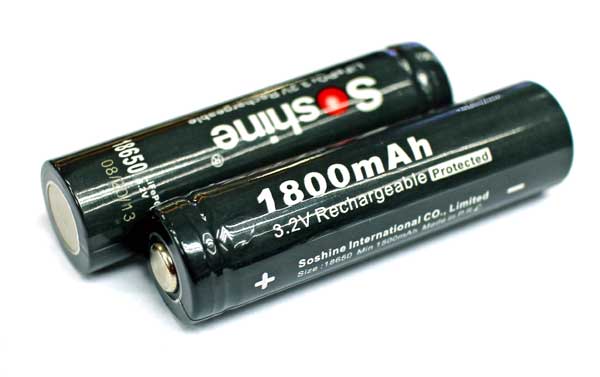

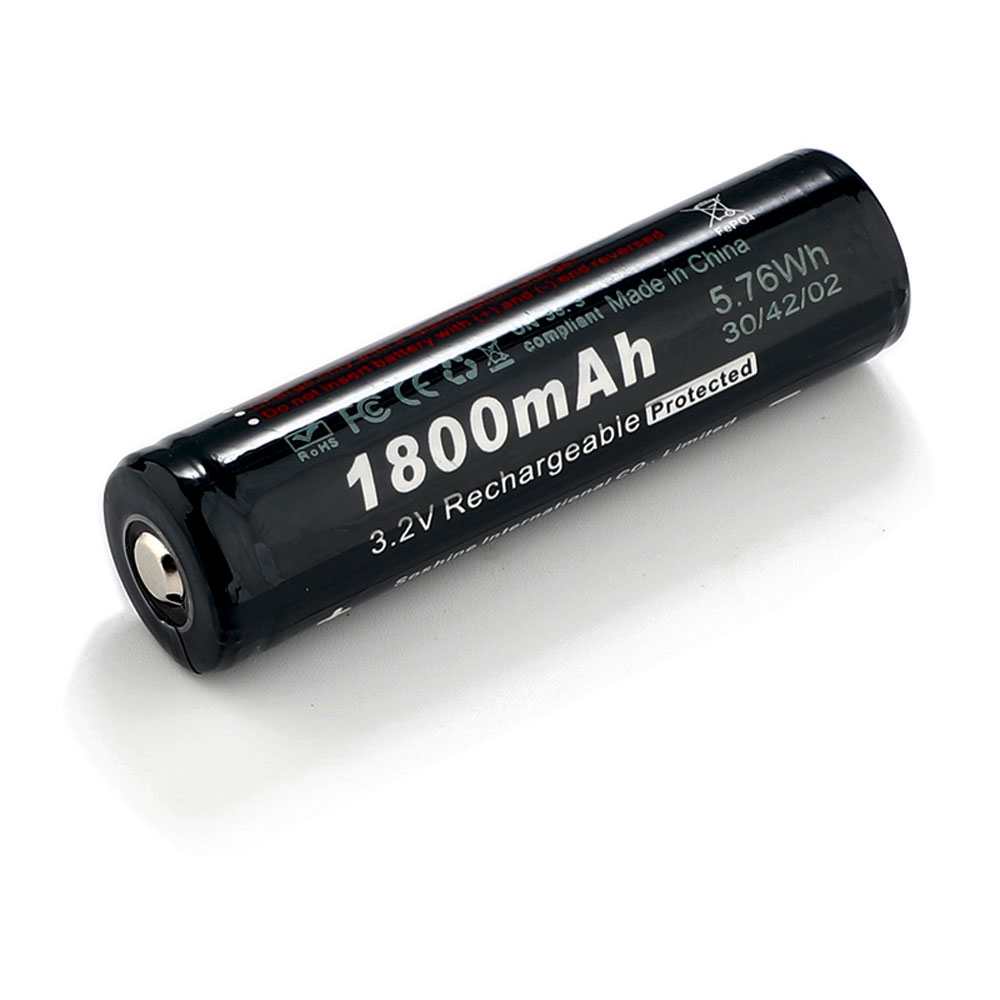

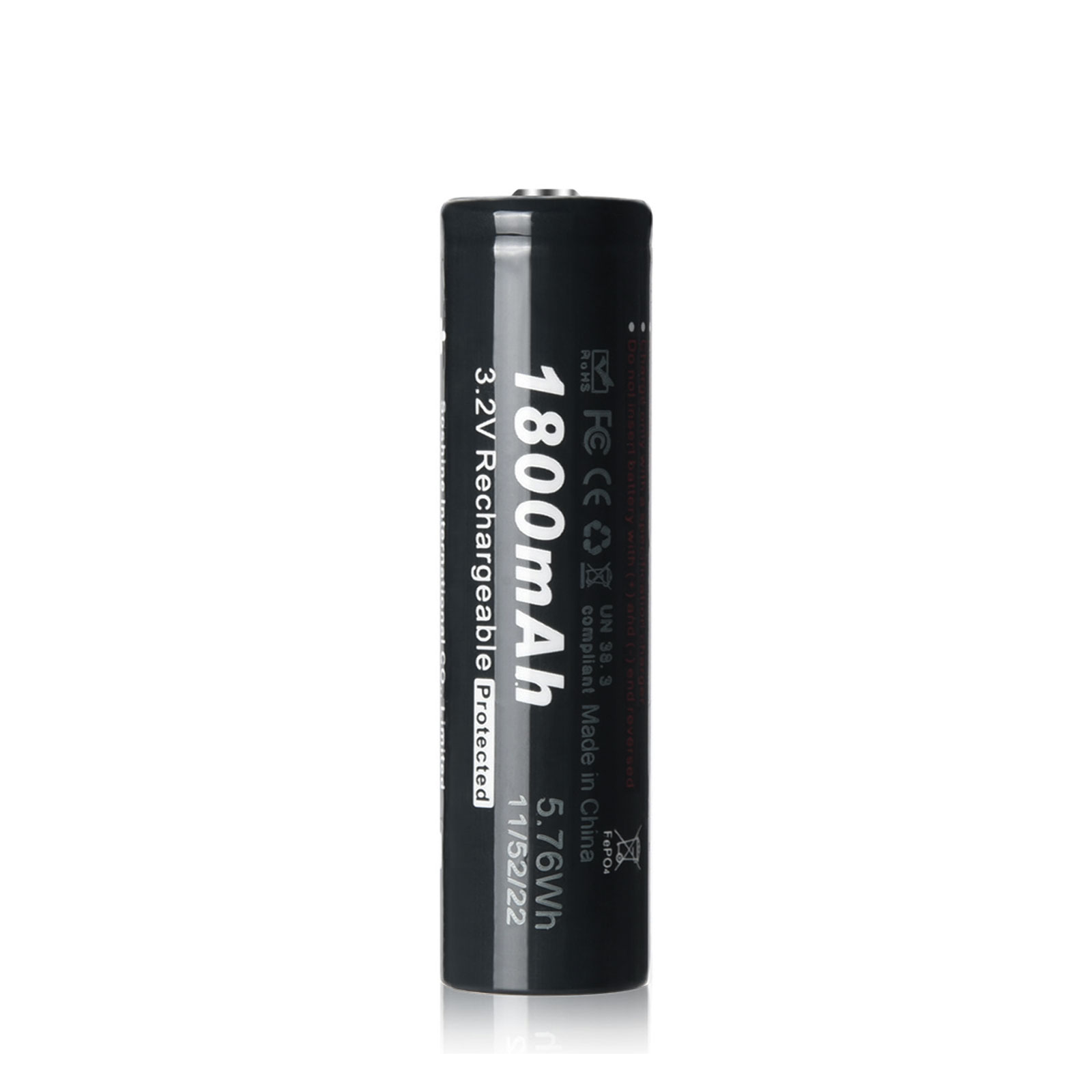

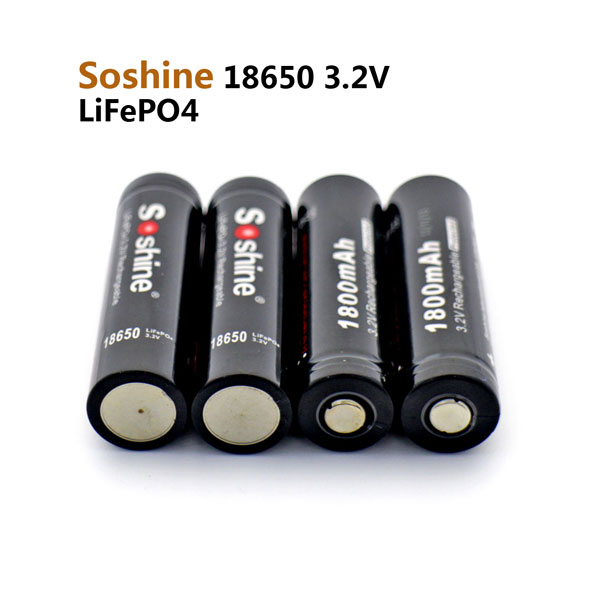

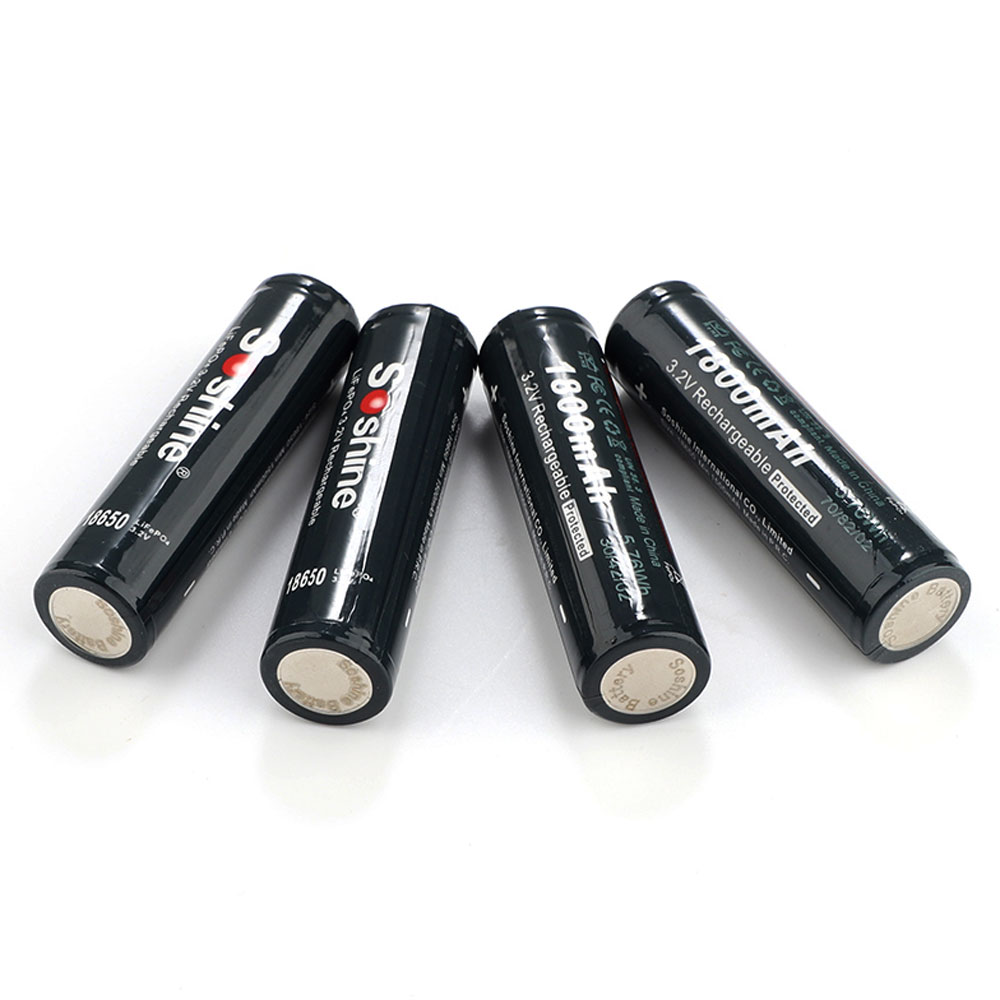

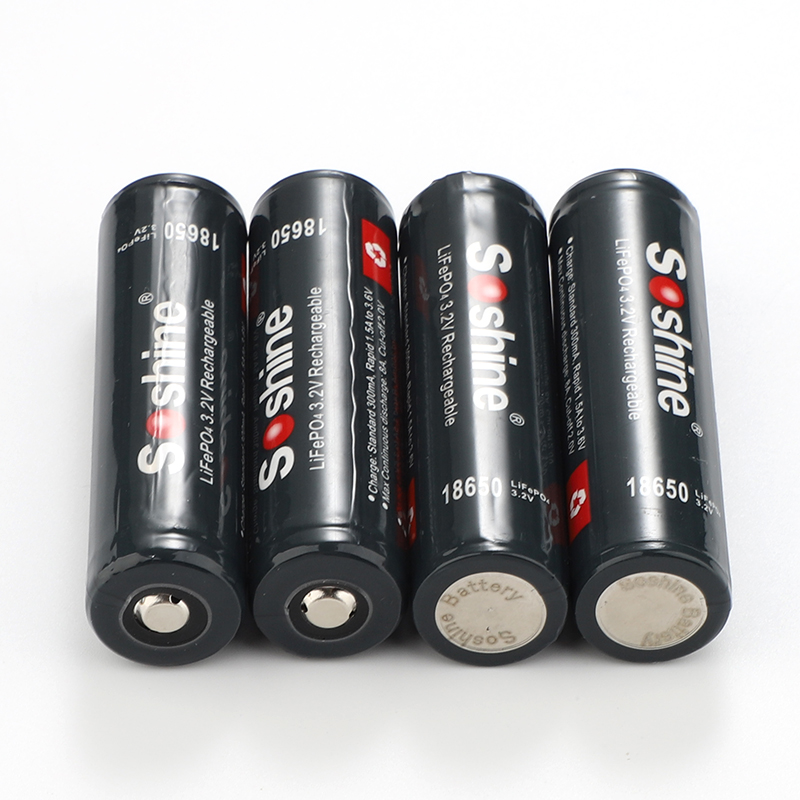

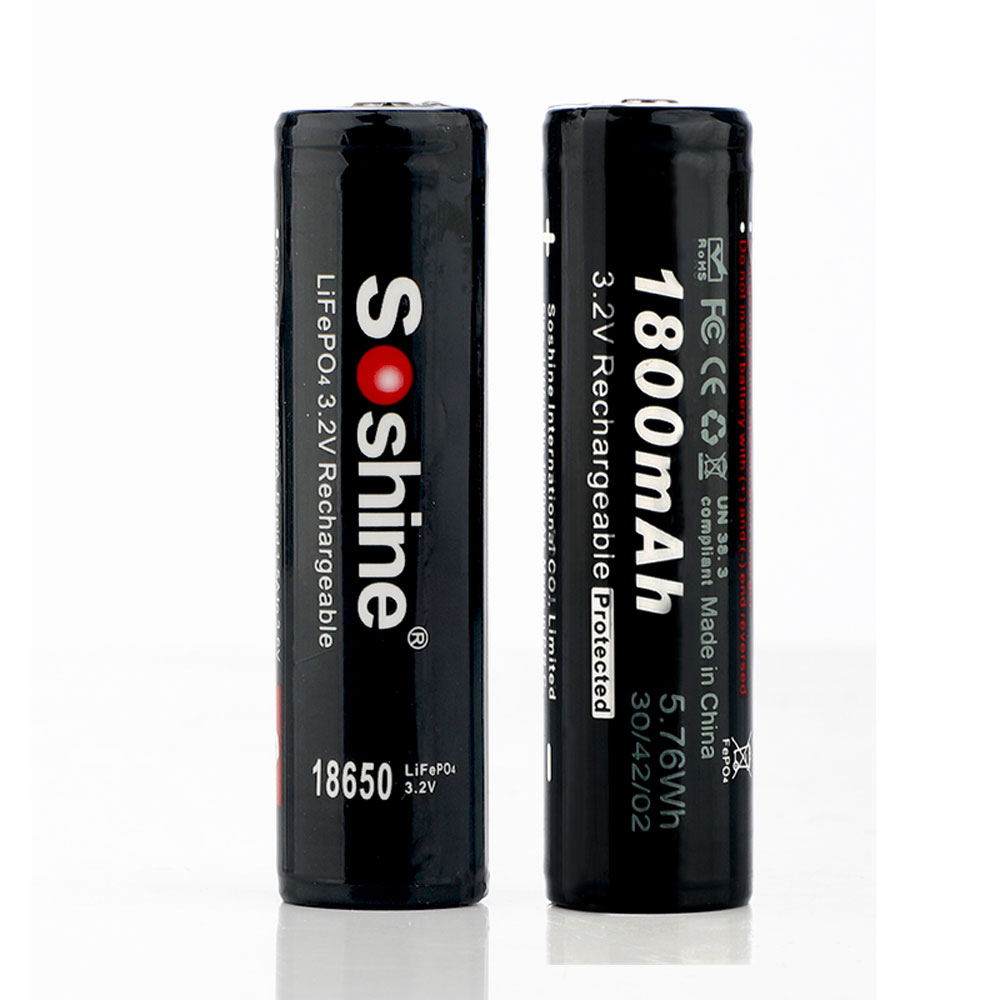

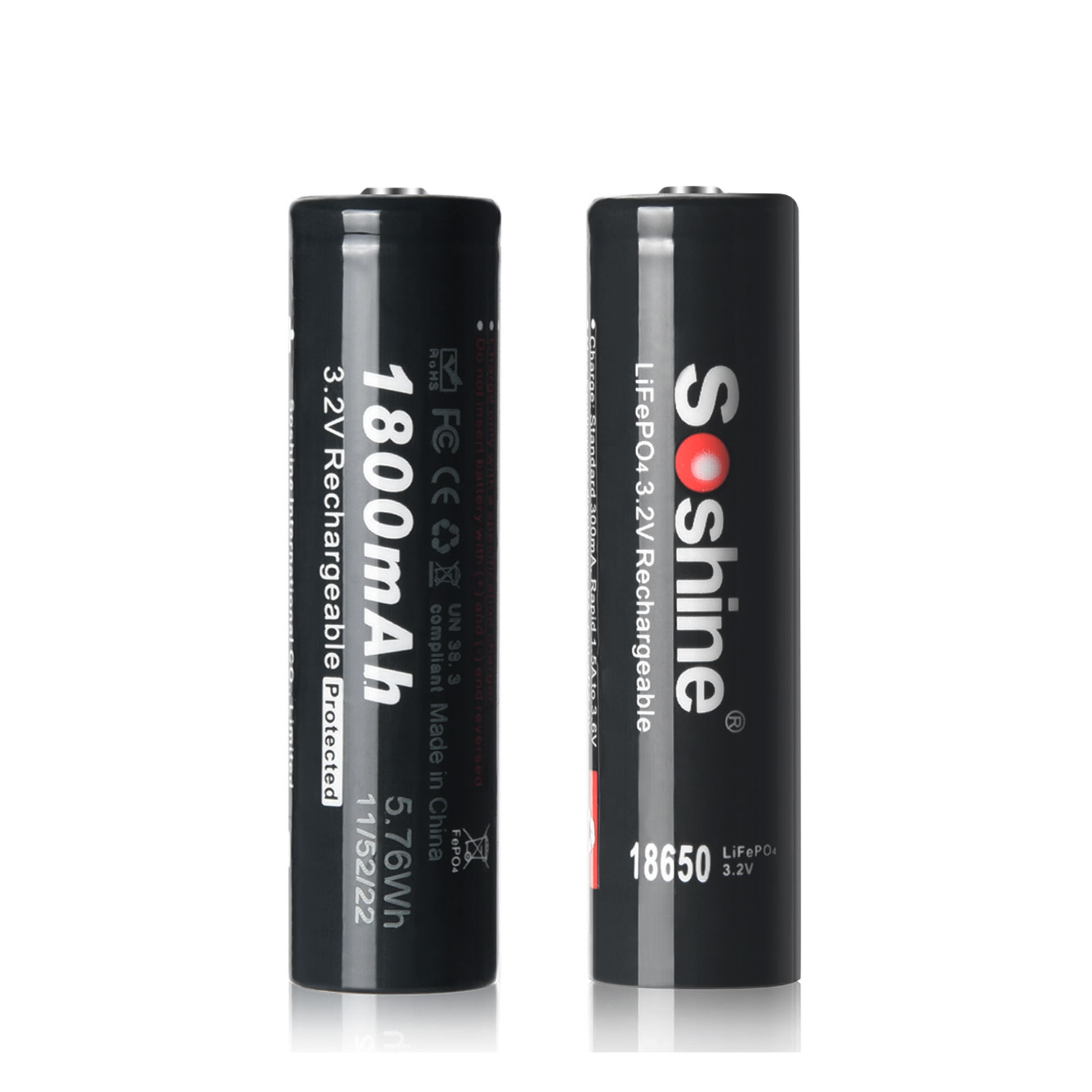

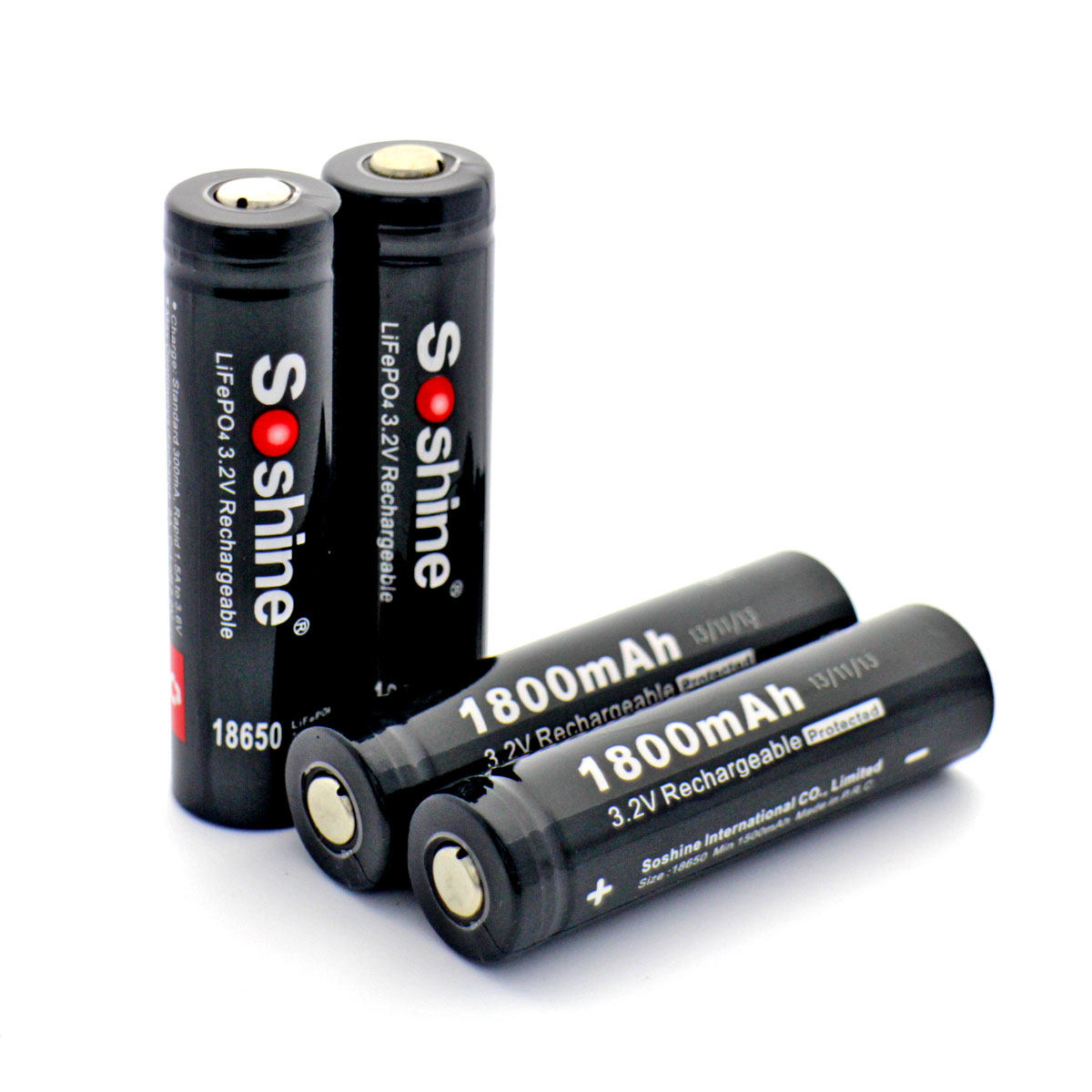

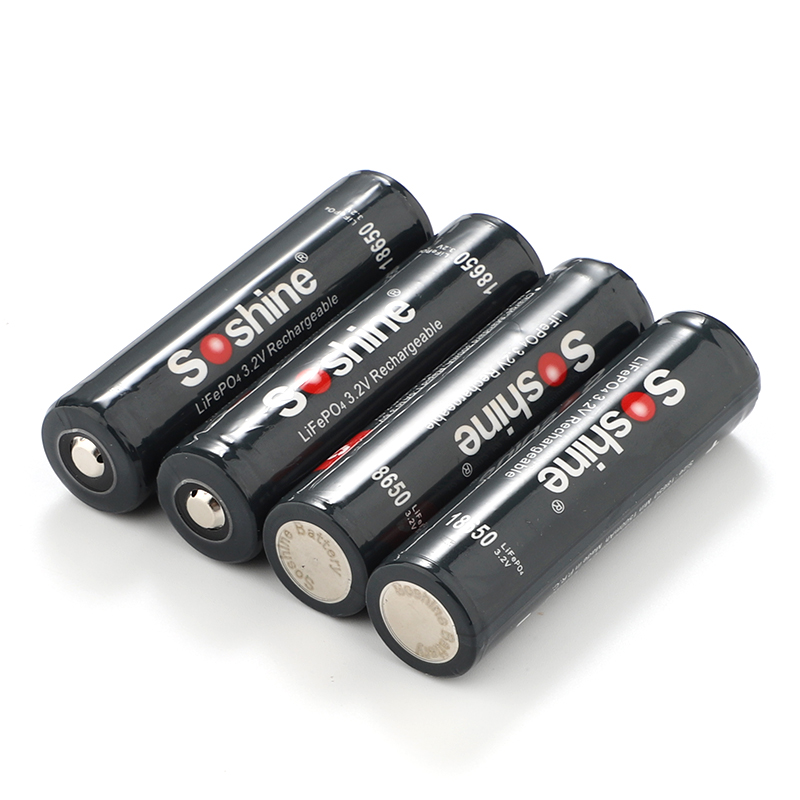

Li-FePO4 Battery

Bar Code:  6951151512437

Type: LiFePO4

Nominal voltage: 3.2 V
Nominal capacity: 1800 mAh

Internal resistance: 47-48 mΩ
Weight: 40 g
Size: D18.1*H68.5mm
Continuous Discharge: 5A / Pulse: 3A
Typical fast charge current: 3.6A to 3.6V CC/CV
Fast charge time: 40 minutes
Cycle life at 10C discharge, 100% DOD: over 1,000 cycles

Quality LiFePO4 rechargeable cell

In Built Safety Circuitry

Maximum capacity and reliability

Positive nipple

Maximum voltage protection: 3.95V

Minimum voltage protection: 2.6V

Maximum current protection: 7500 mAh

Maximum continuous current: 6000 mAh

PCB Protected Board:
Over charge protection;

Discharge protection;

Over current protection.

Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest that batteries should be charged and discharged once every 6 months.

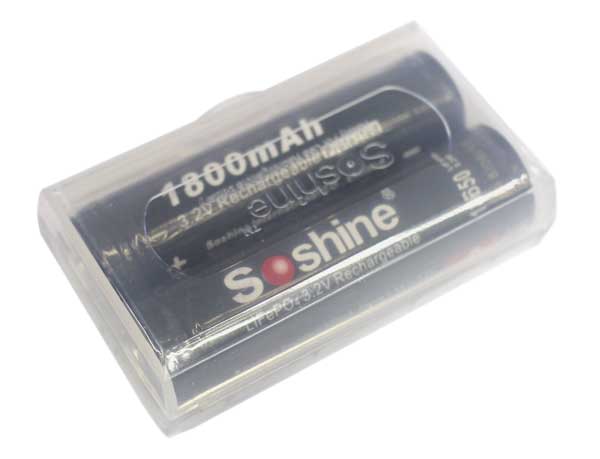

Packing details:

1 pcs/white color box

196-198 boxes/carton

9.9 kg/carton

Carton size: 34*12*27 cm

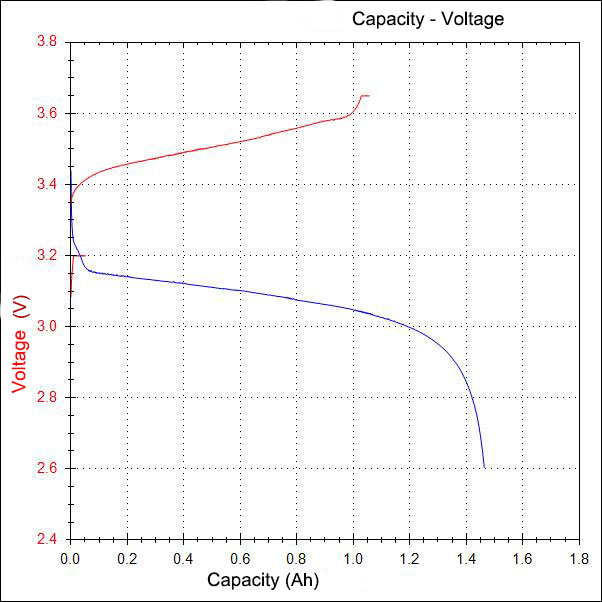

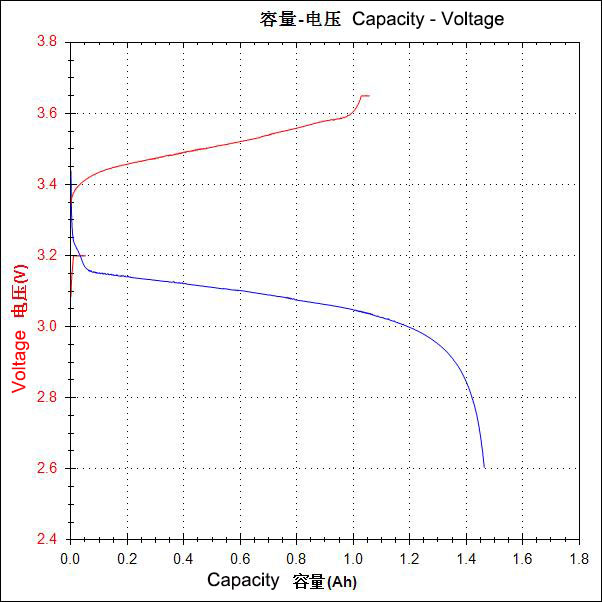

Test conditions:

1) Temperature: 25~30℃

2）Euipment: GHC5V50A32Z
