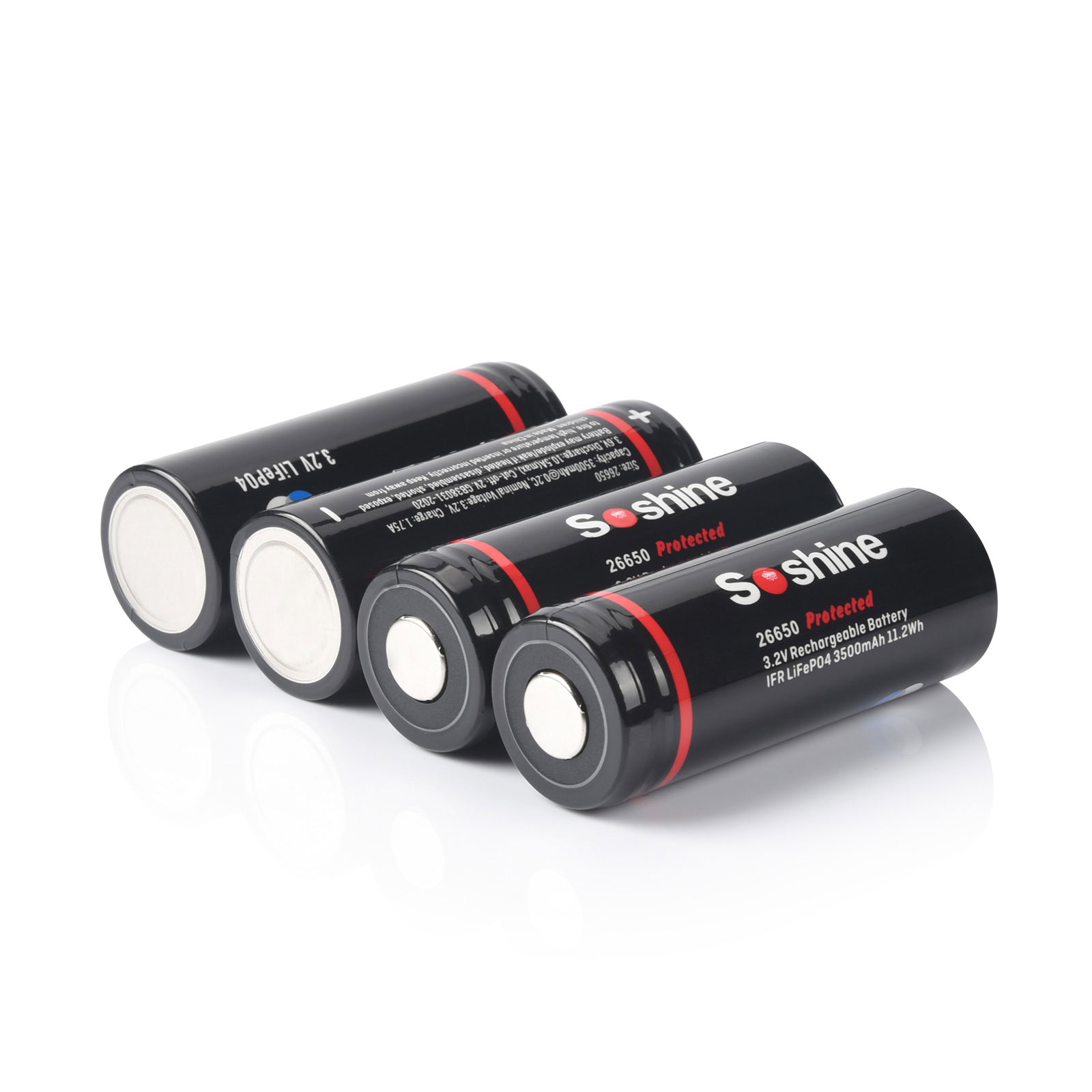

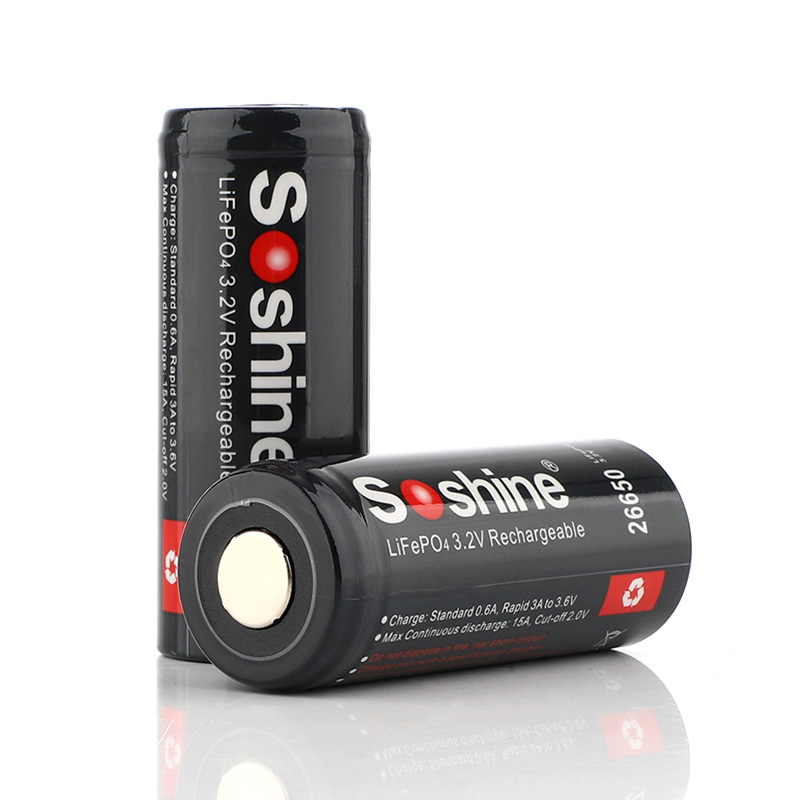

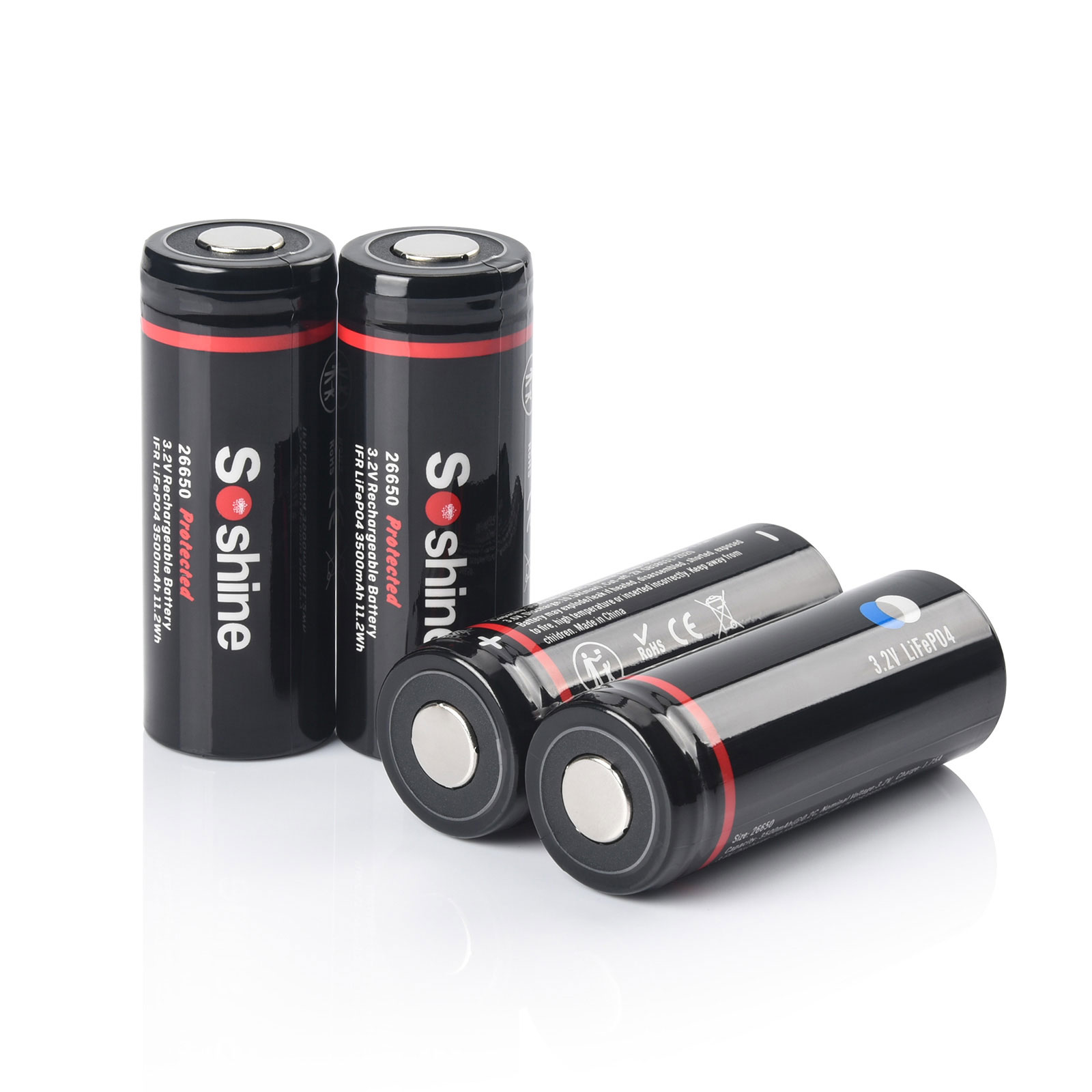

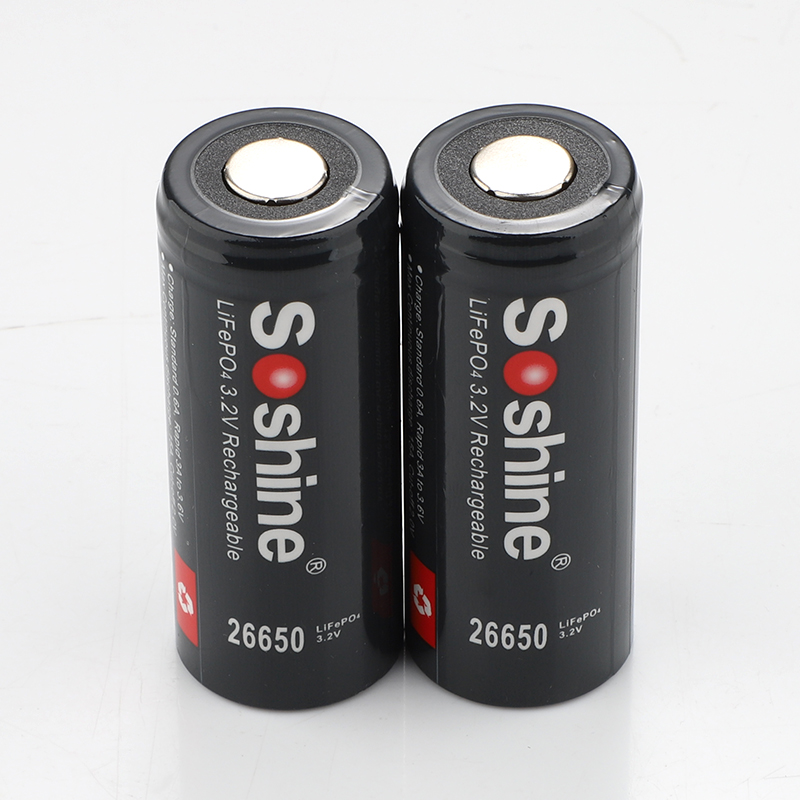

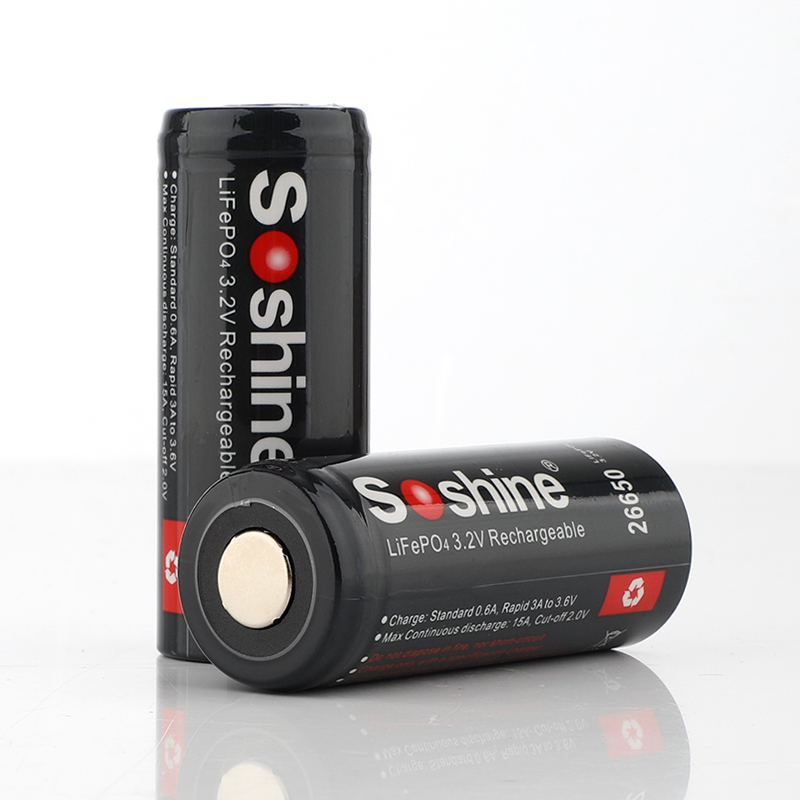

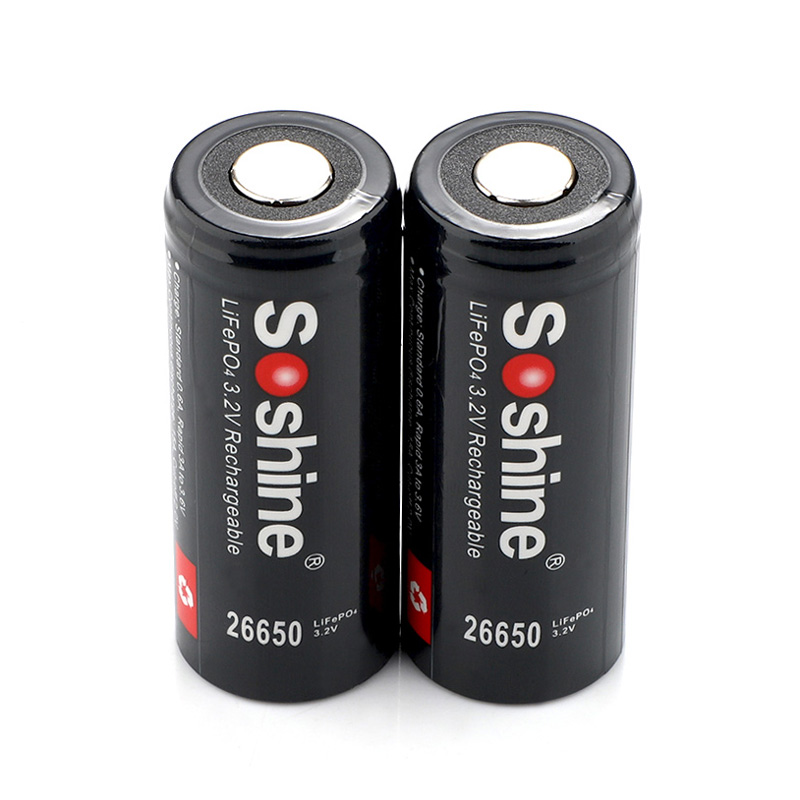

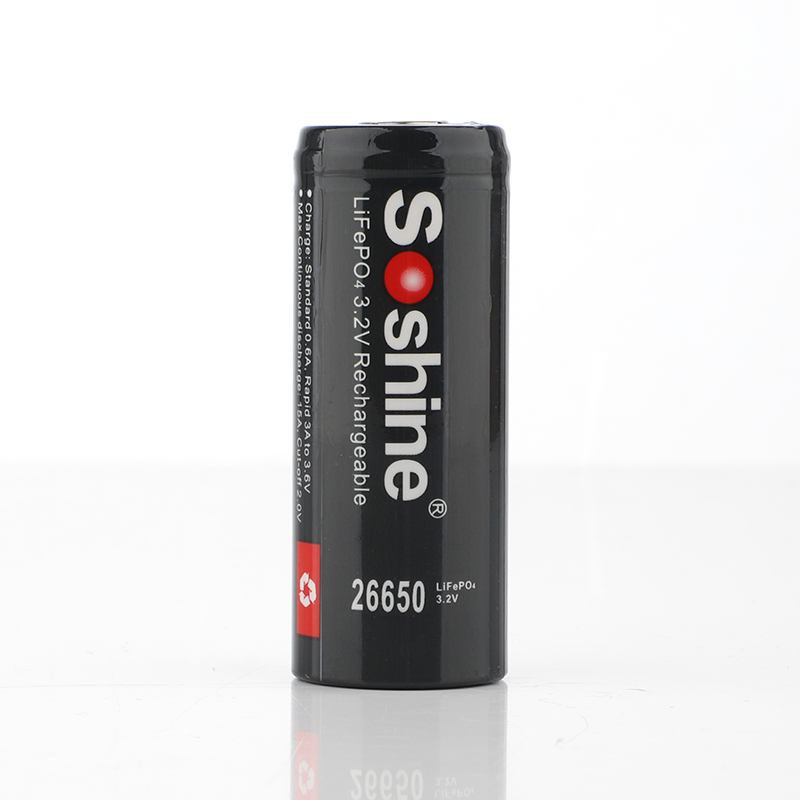

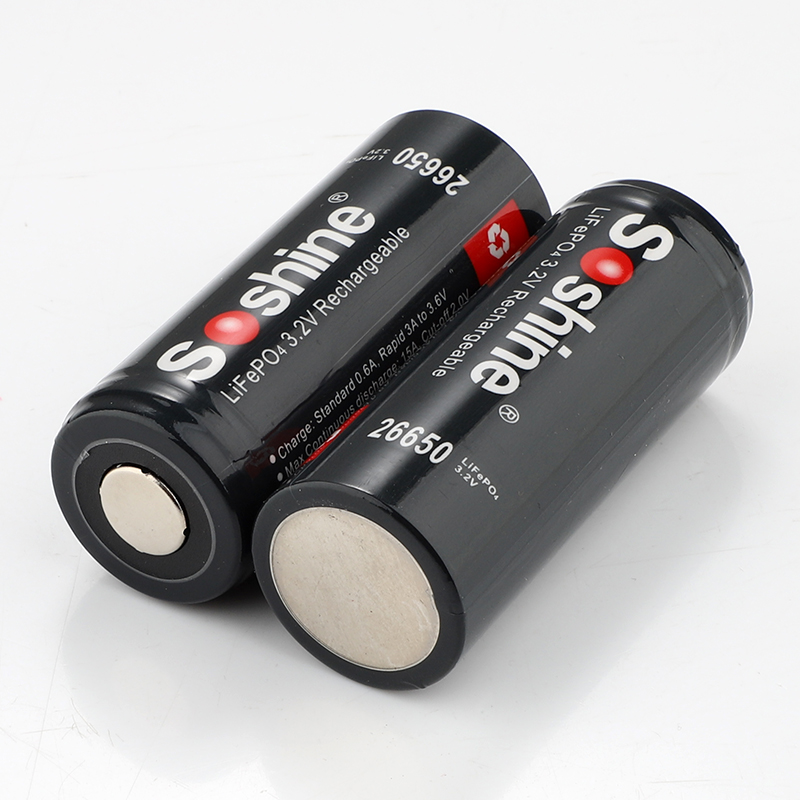

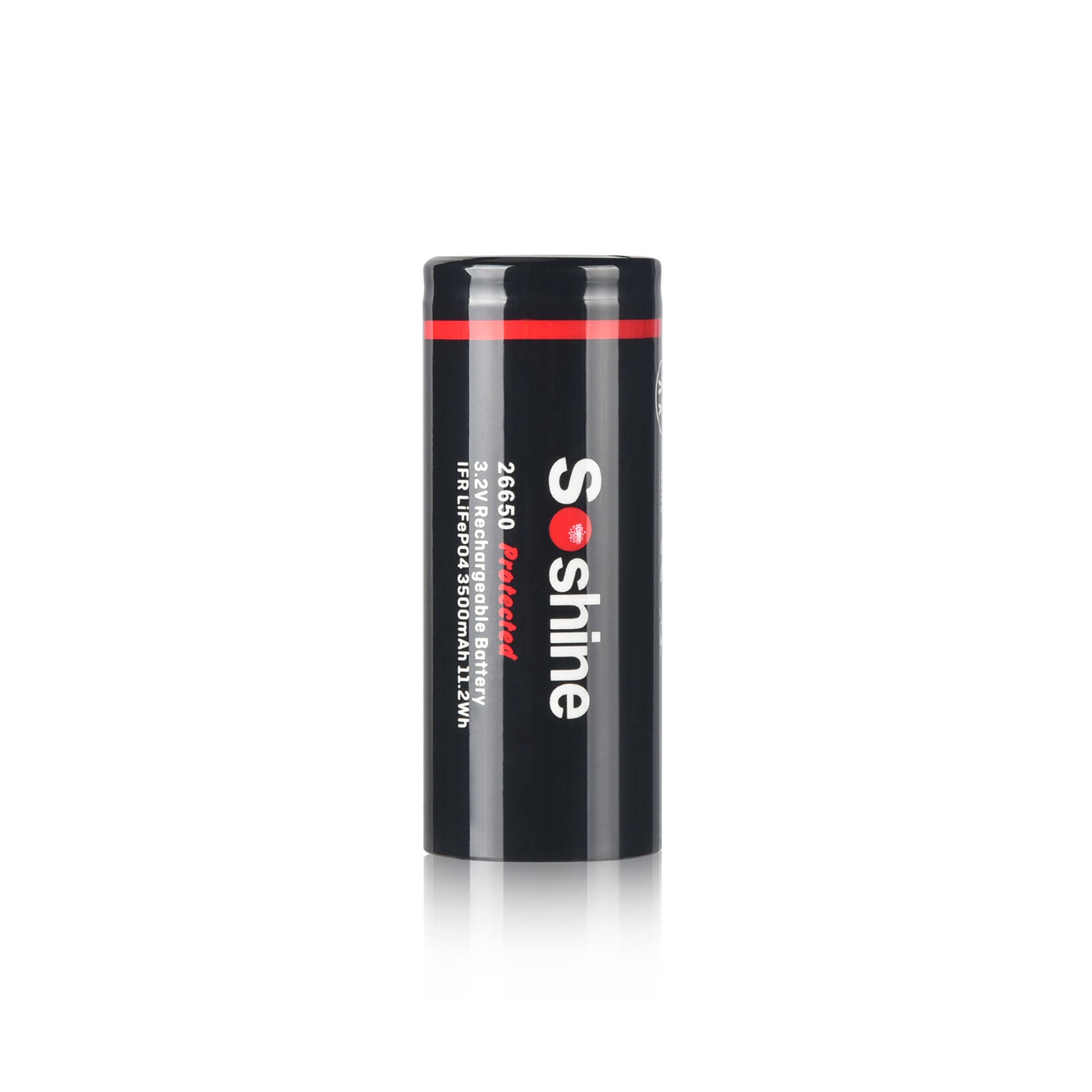

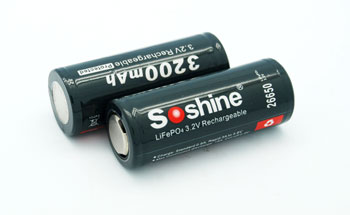

Li-FePO4 Battery

Bar Code:  6951151512369

Type:LiFePO4

Nominal capacity: 3500mAh
Nominal Voltage:  3.2V
Size: Max. 26.25 * 69.1 mm
Weight: 87g (1 cell),

            90 g (1 cell with package,75*27*27 mm),

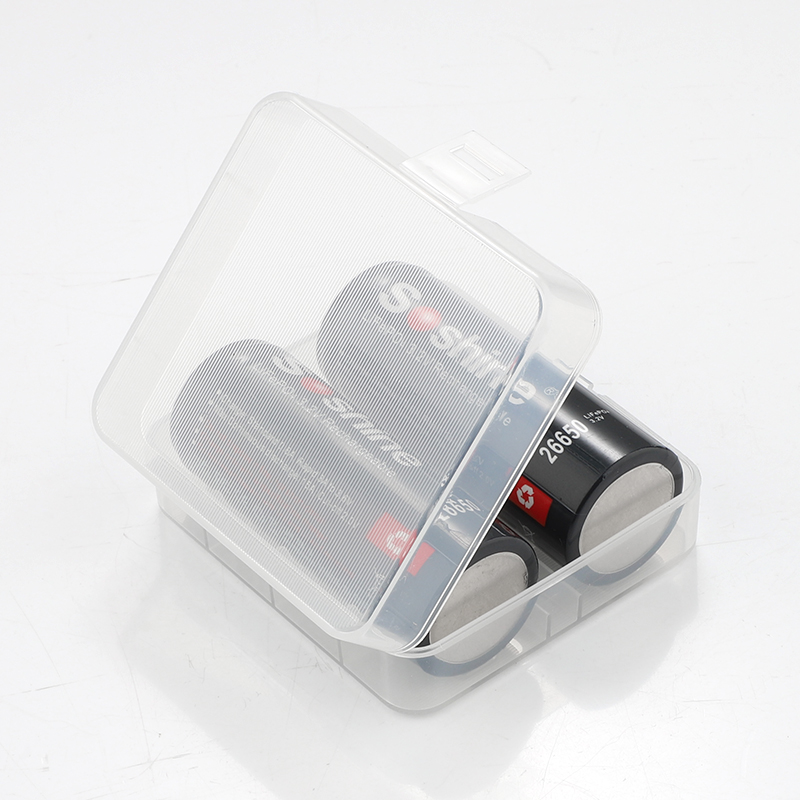

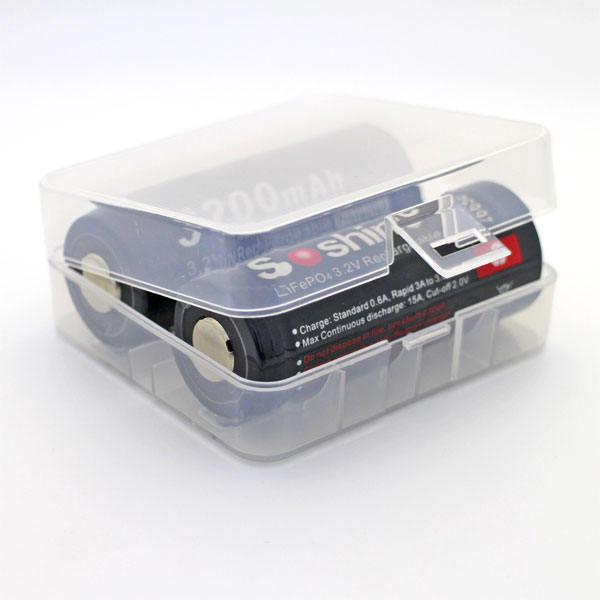

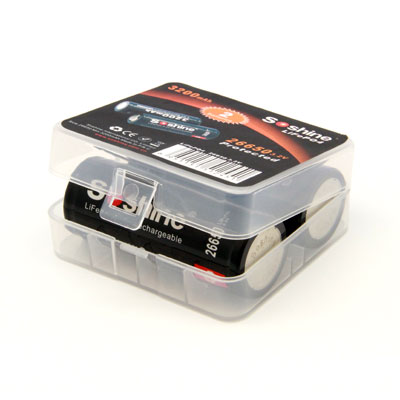

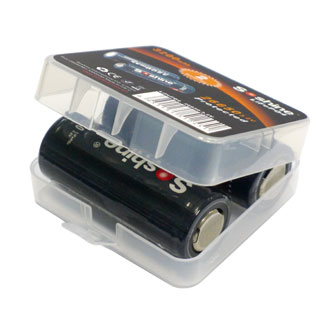

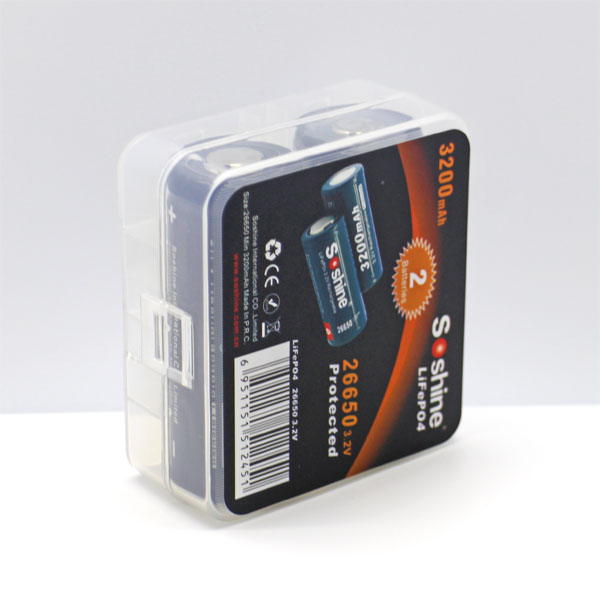

            208 g (2 cell with package,75*71*33 mm),

            409 g (4 cell with package, 113*80*33 mm)
Continuous discharging  current: 5A
Burst discharging : 7-8A

Internal impedance: (1kHz AC) 45 mΩ typical
Typical fast charge current: 6A to 3.6V CC/CV
Cycle life at 2C discharge, 100% DOD: over 1,500 cycles
Safety: Excellent abuse tolerance and environmentally friendly

High quality LiFePO4 rechargeable cell

In Built Safety Circuitry

Maximum capacity and reliability

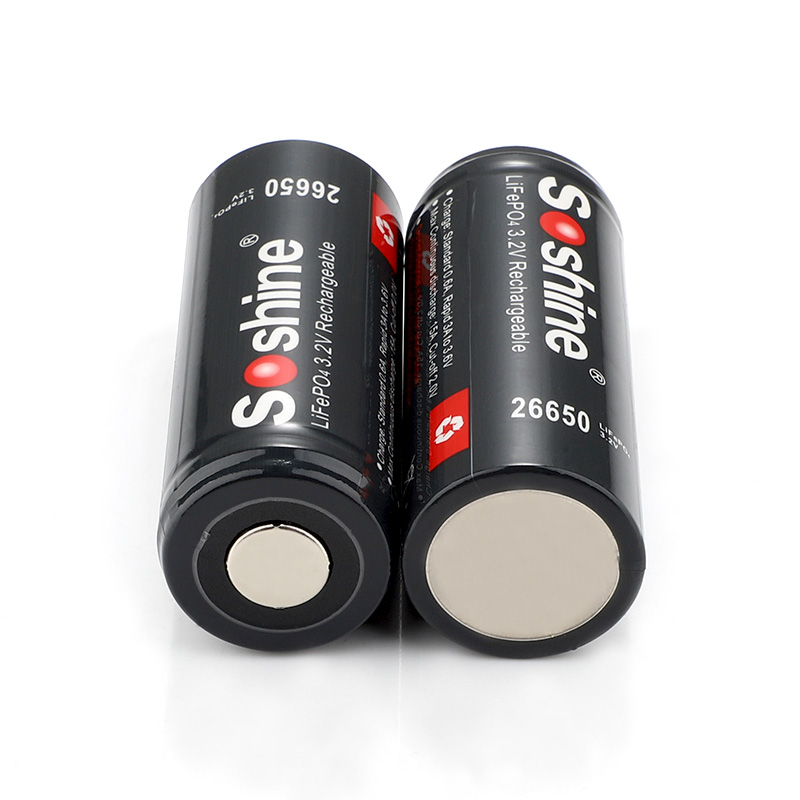

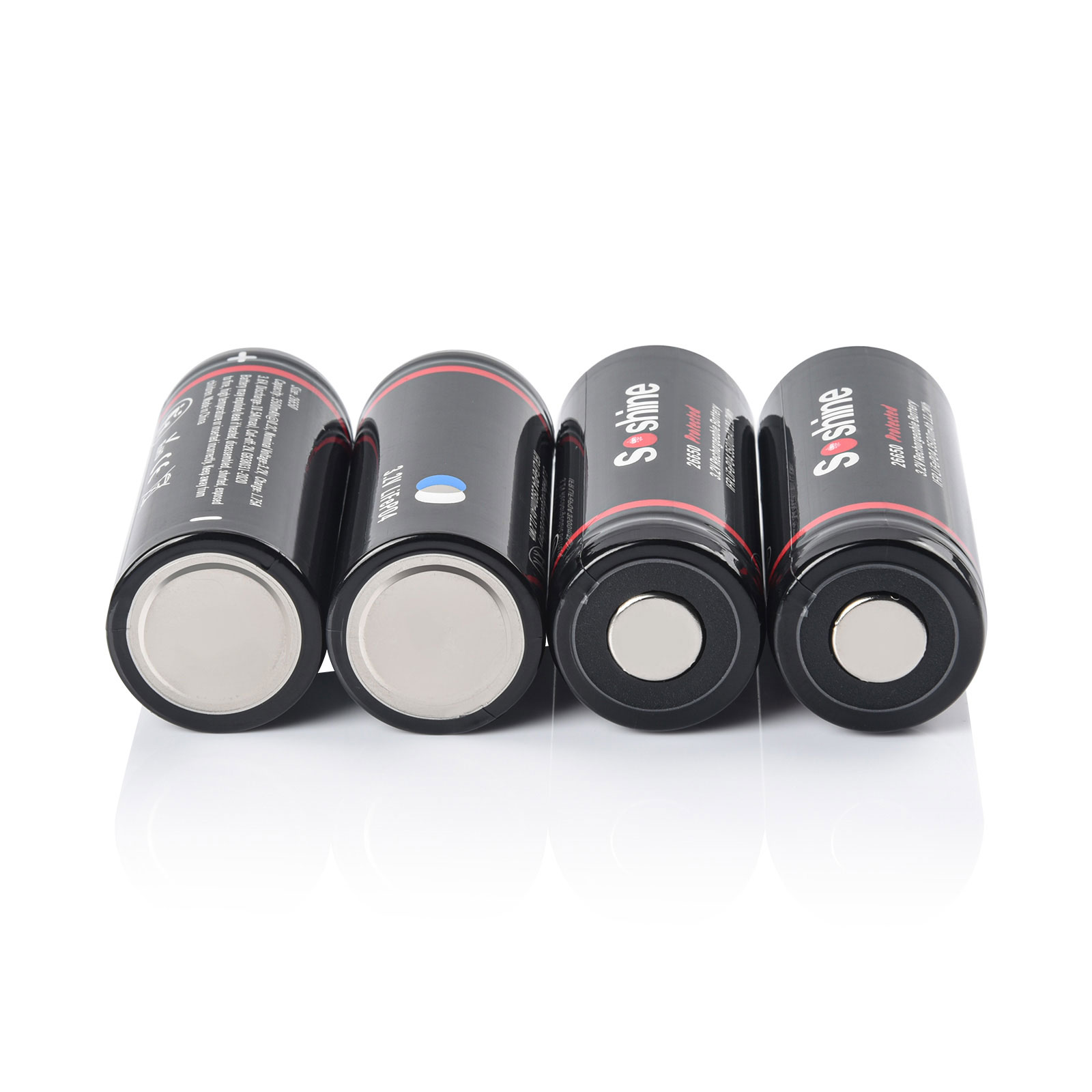

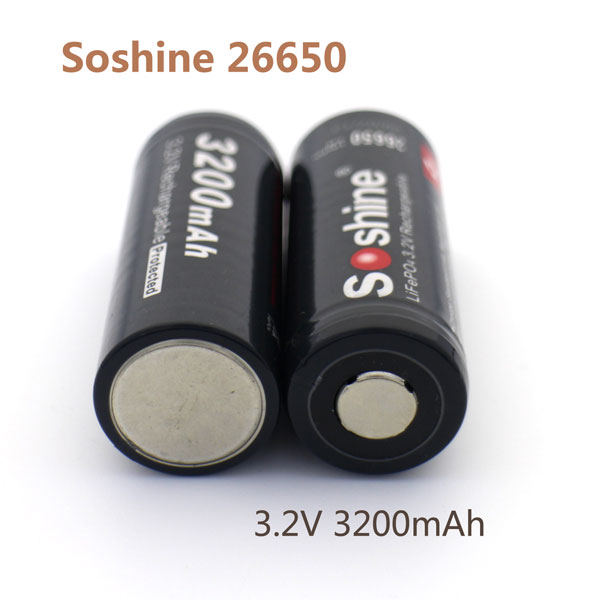

Positive nipple



PCB Protected board:
Over charge protection;

Over discharge protection;

Over current (short circuit) protection.



Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest that batteries should be charged and discharged once every 6 months.
