9V/6F22

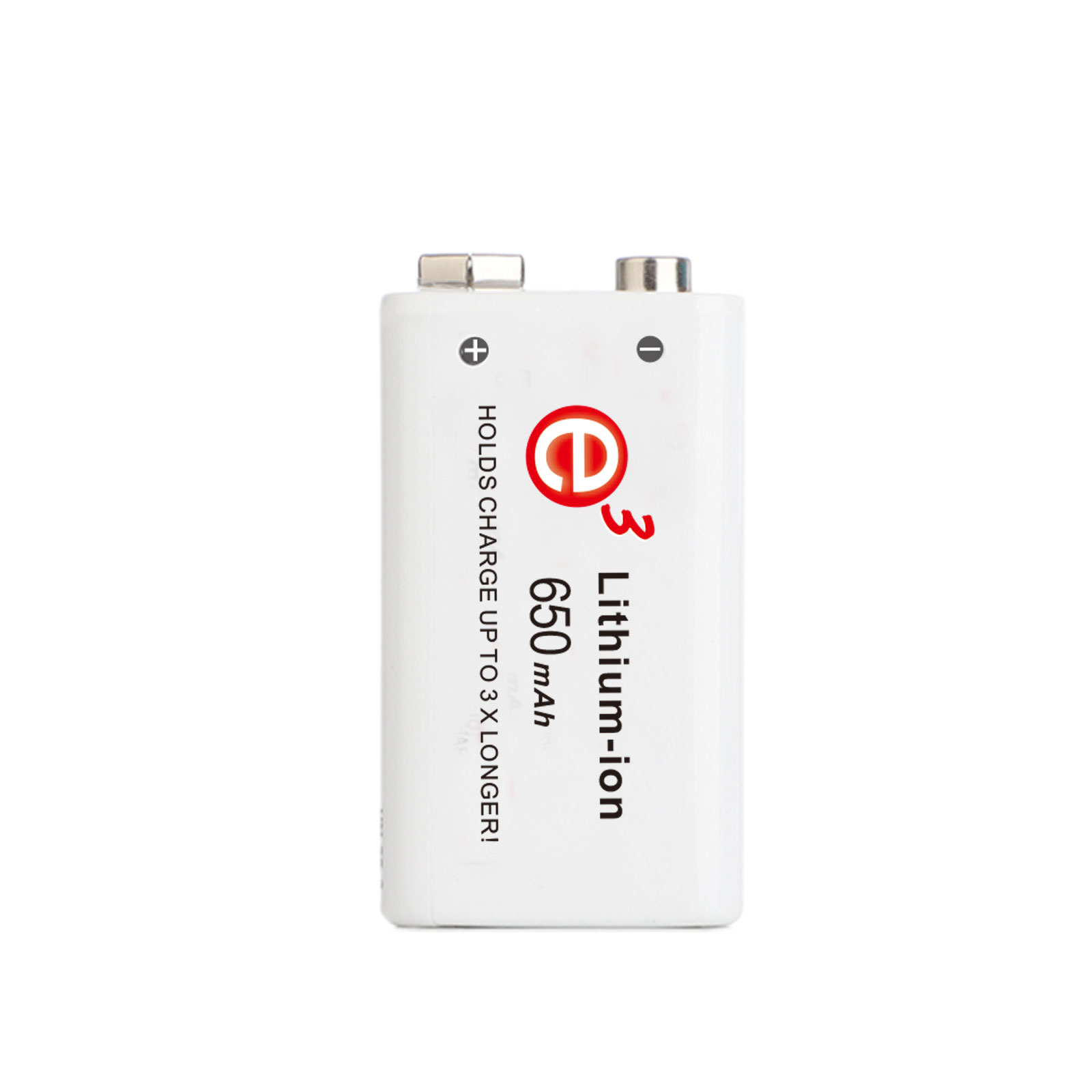

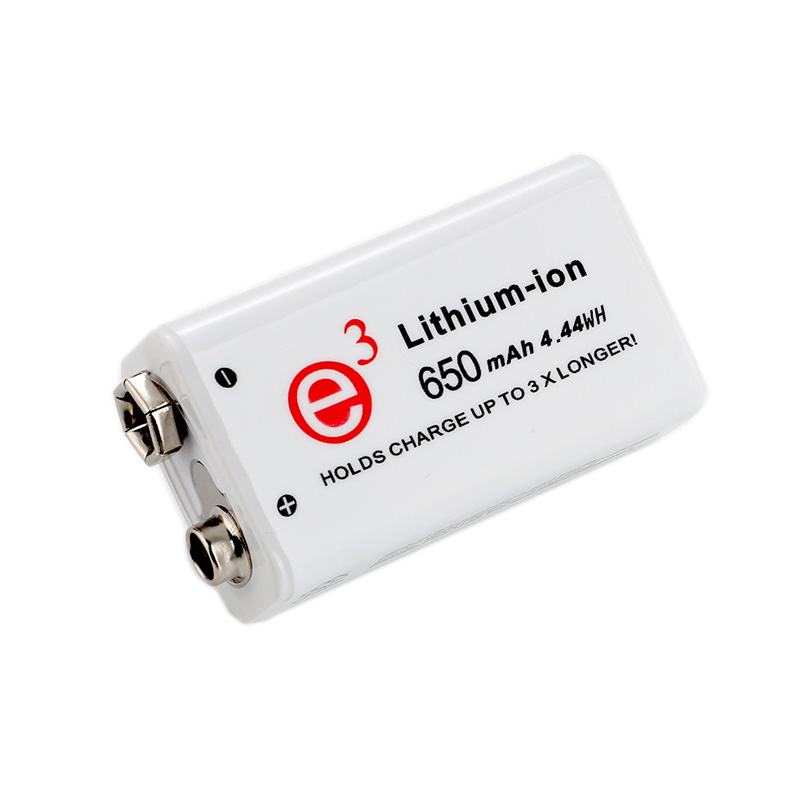

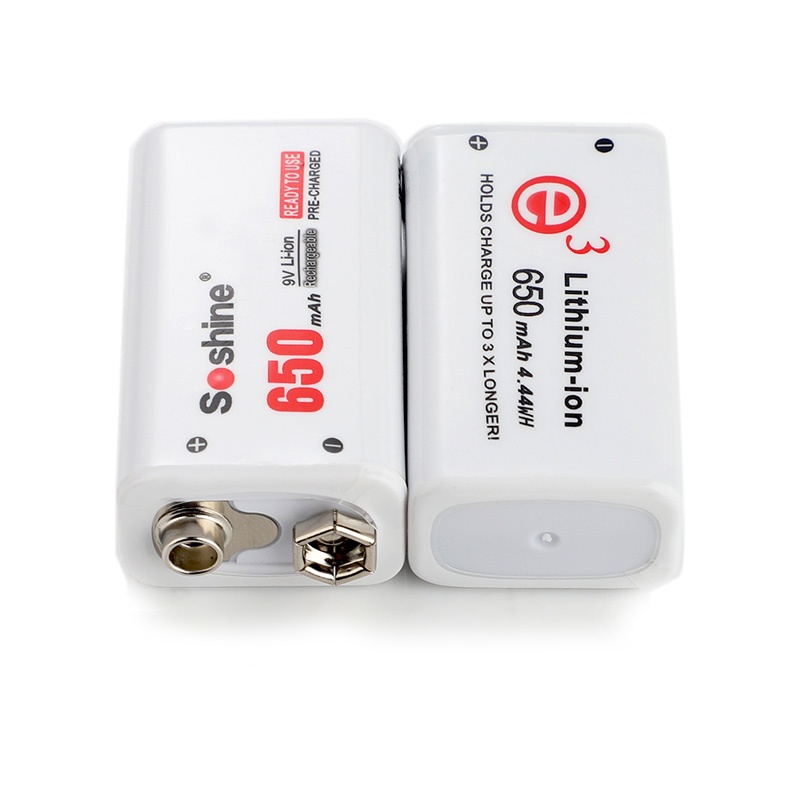

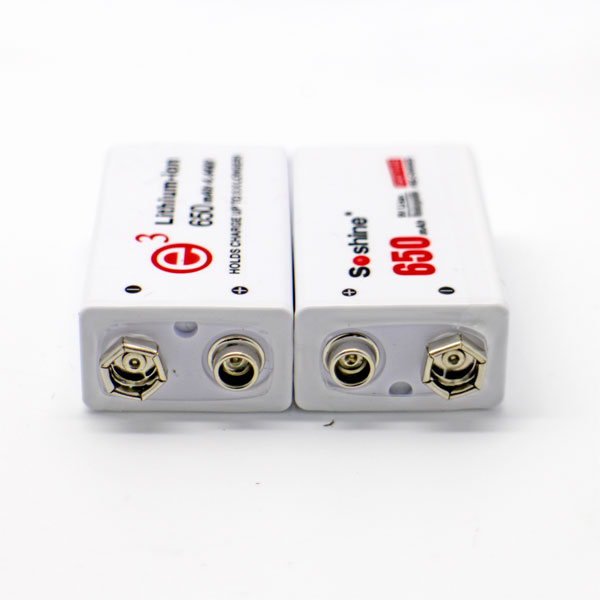

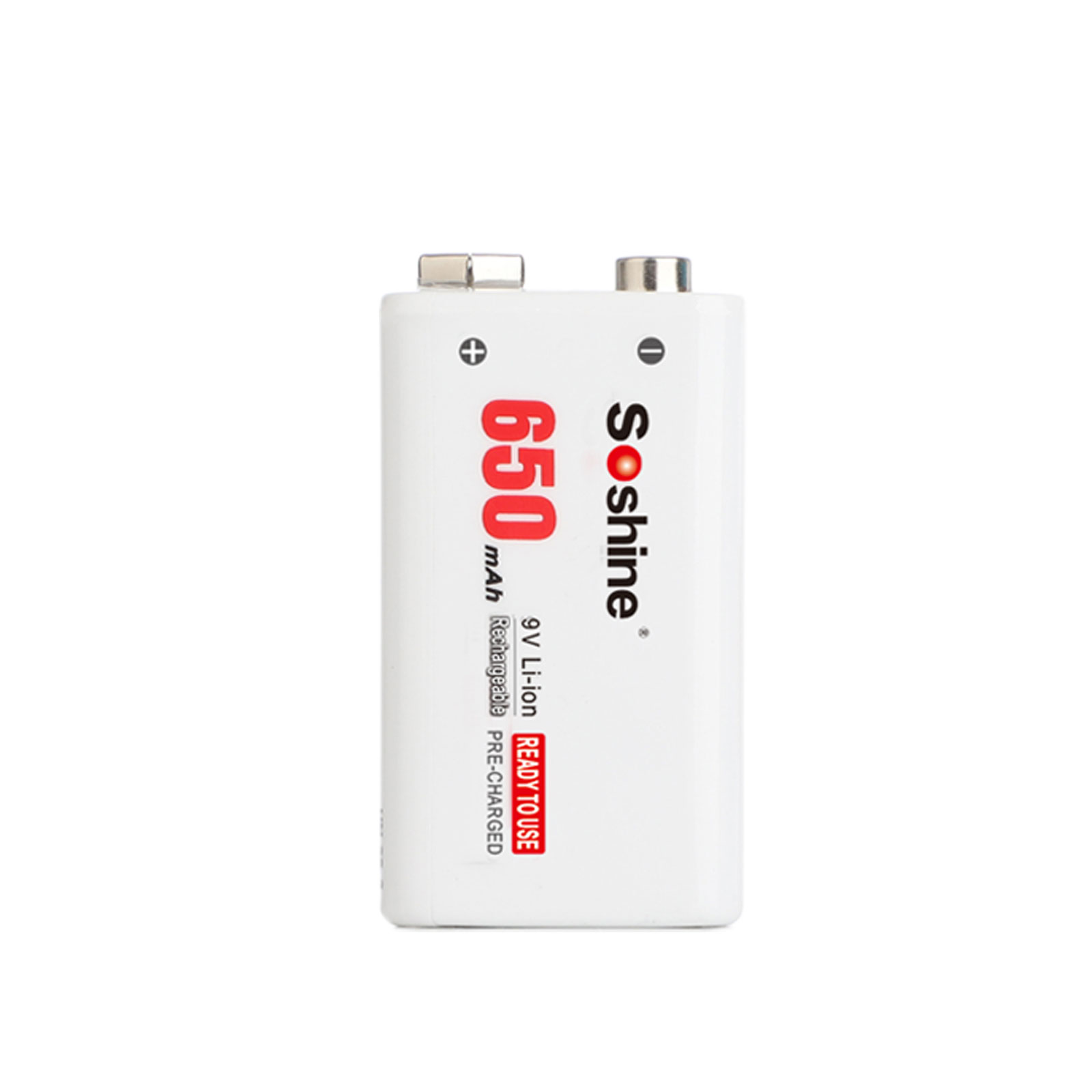

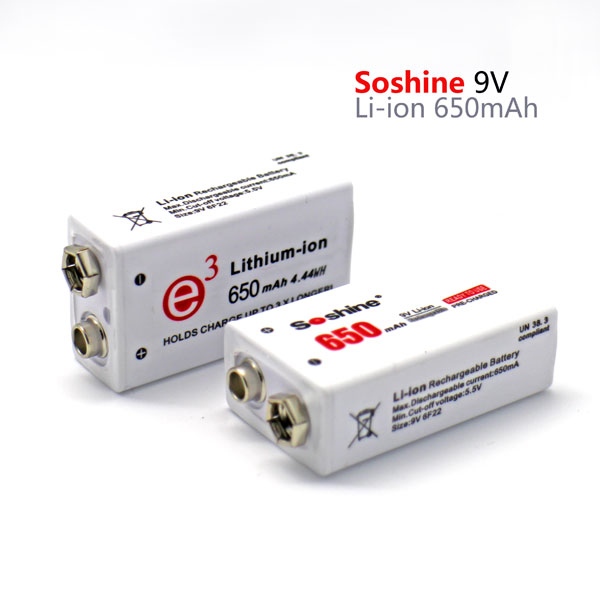

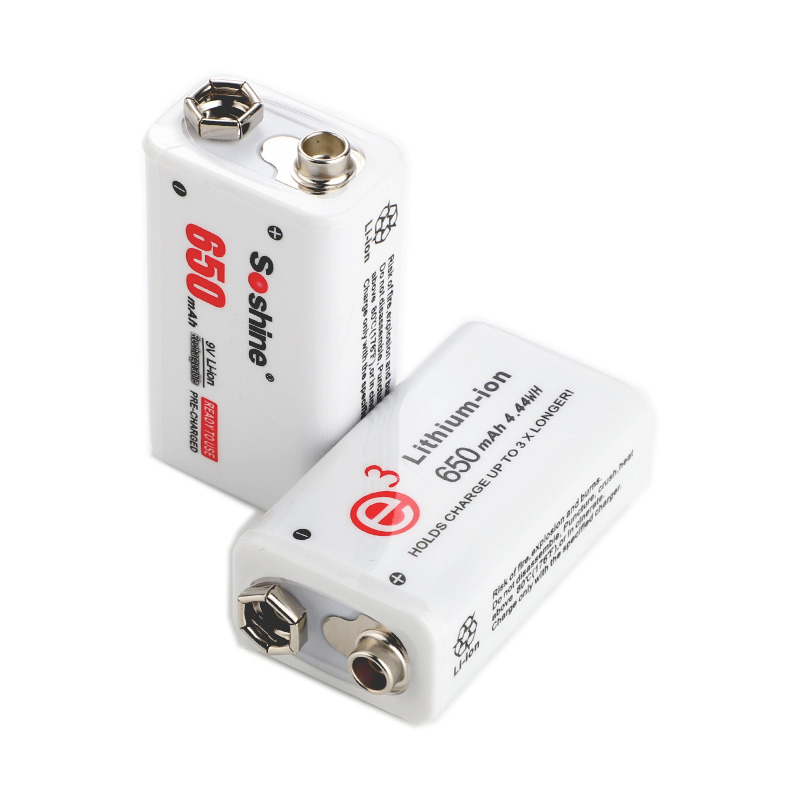

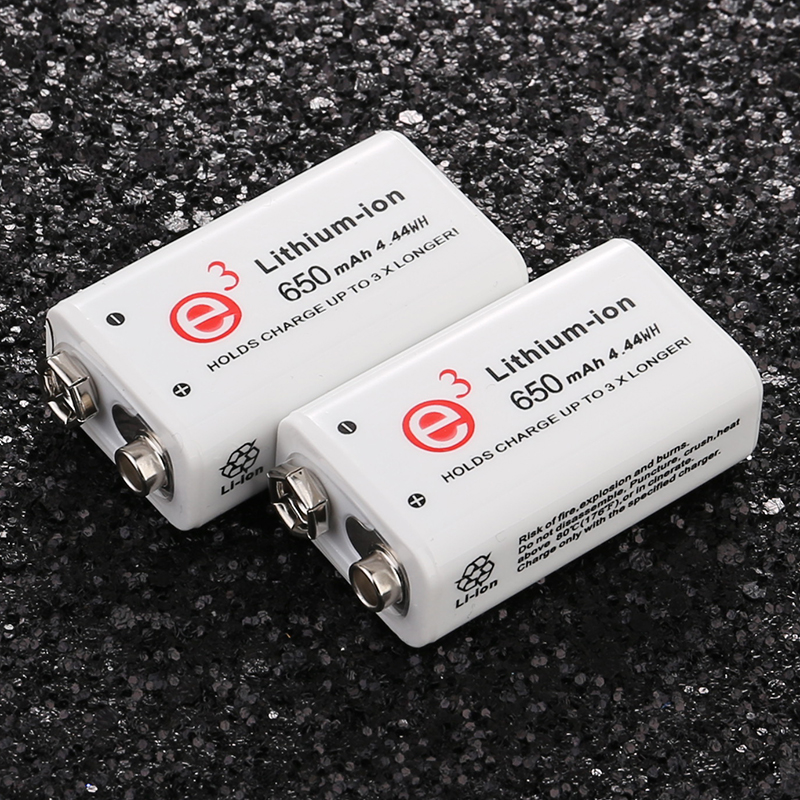

Soshine 9V Li-po Rechargeable Battery: 650mAh 7.4V

Product Overview

Can charger by other 9V charger
Slim design(15.4mm)
Ready to use at any time

Model: Li-7.4V-650

Напишите нам: soshineby@gmail.com
Позвоните нам: +375(29)8765720

Description

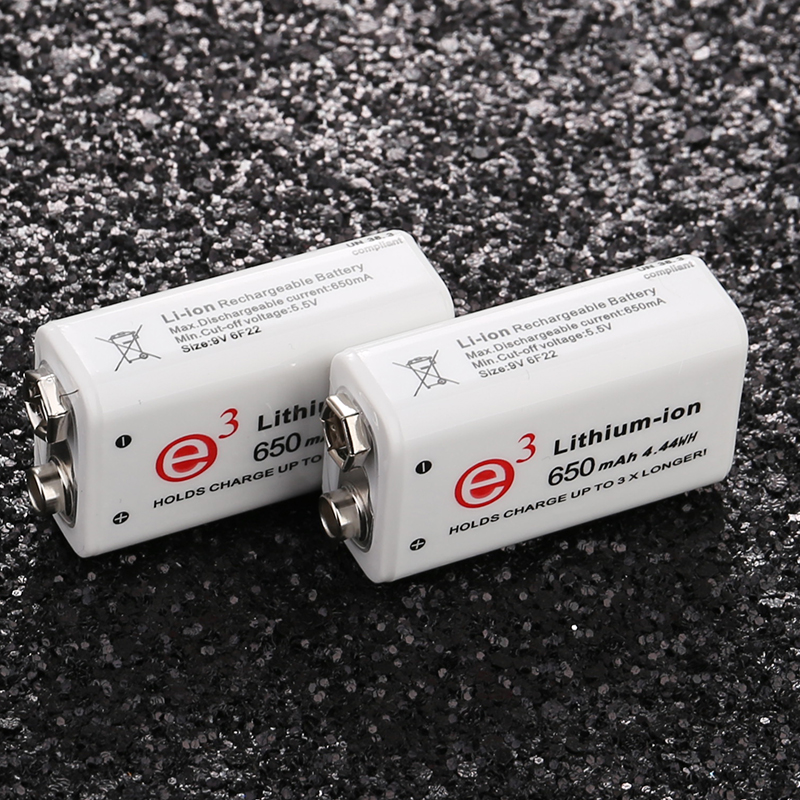

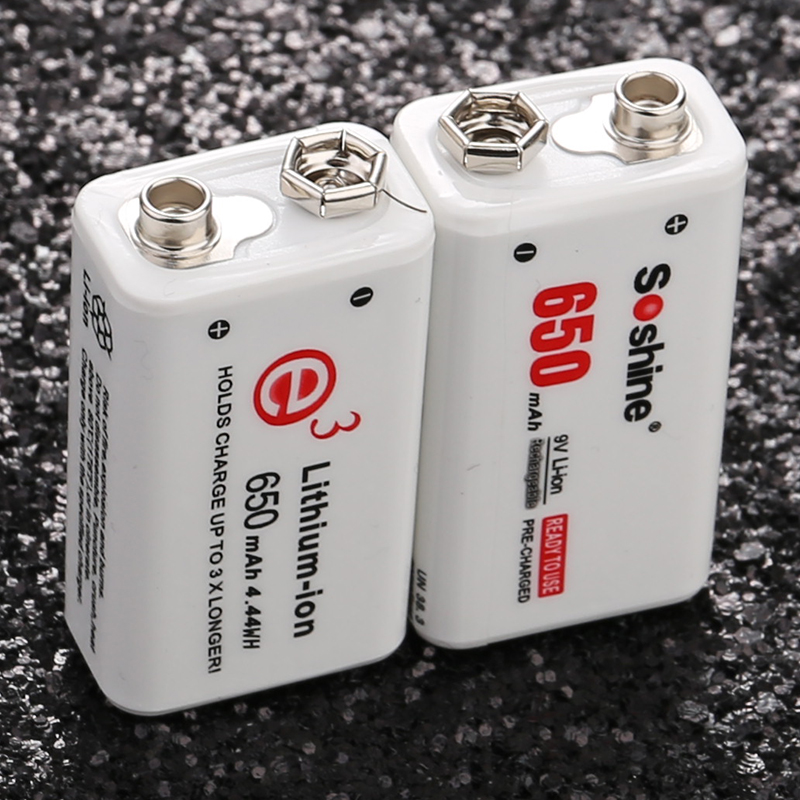

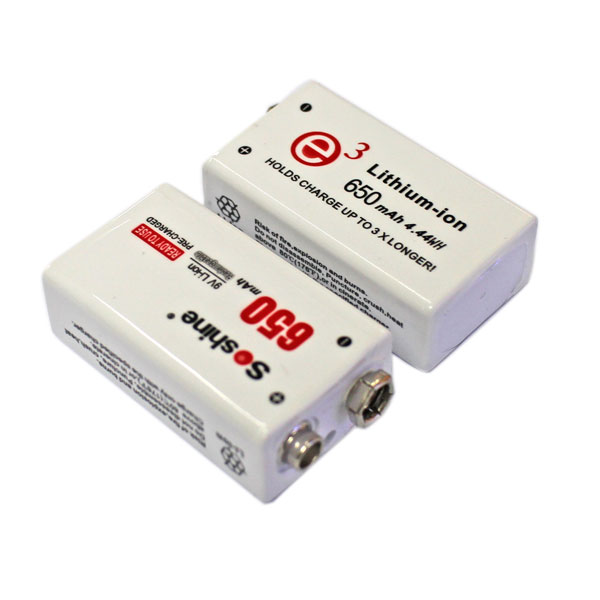

New 9V Li-po Rechargeable Battery: 650mAh 7.4V

Bar Code: 6951151510211

Model: Li-7.4V-650

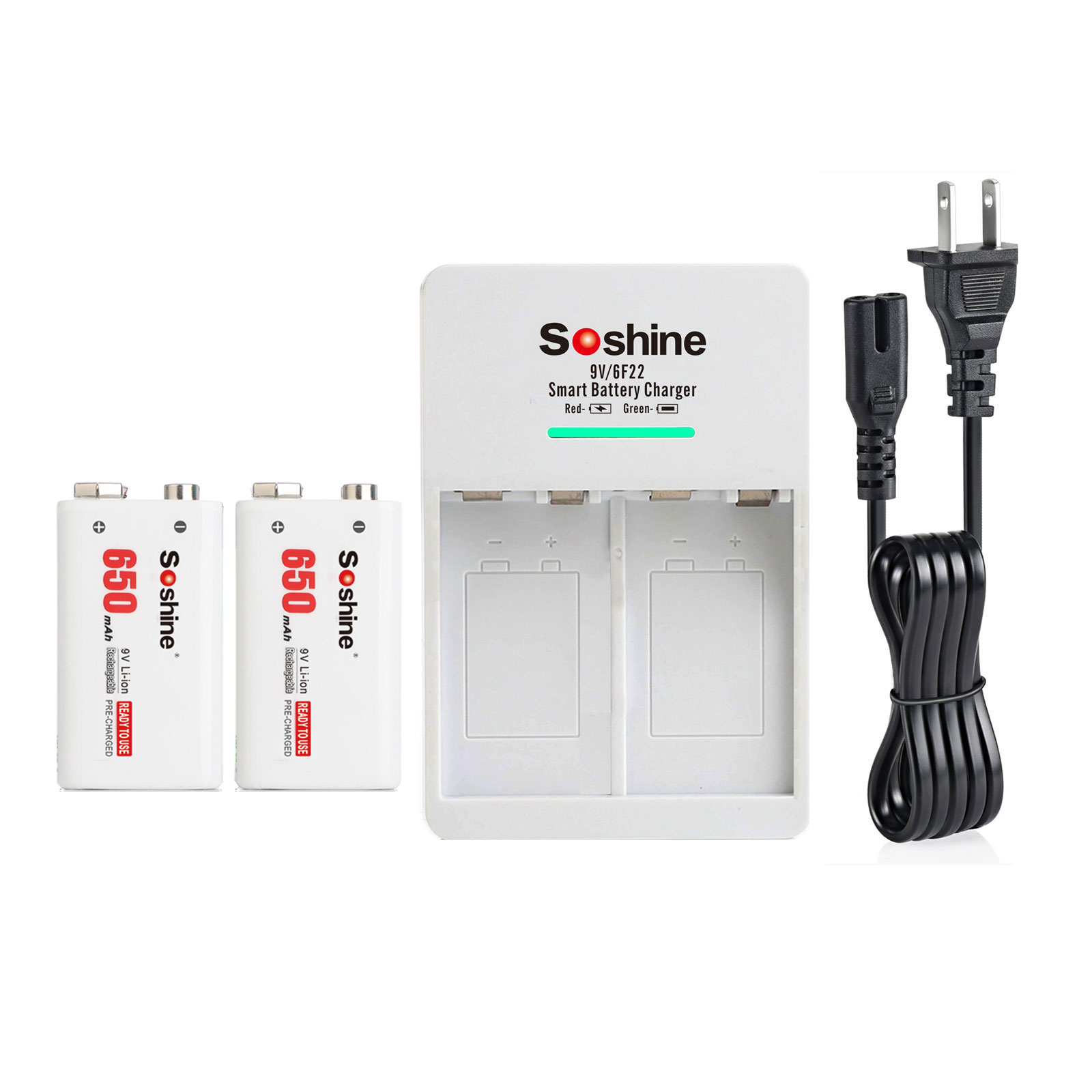

Can charged by other 9V charger
Slim design(15.4mm)
Ready to use at any time

Specification:

Type:      Rechargeable Li-Po
Dimension:(48.5+-0.5)*(26.1+-0.2)*(15.4+-0.3)mm (max)
C5mAh: 650(mini)
C5mA:    650mAh
Nominal Voltage:    7.4V
Capacity : Nominal   650mAh
              Minimum  630mAh

Internal resistance: 144-150 mΩ
when discharged at 0.2C5mA to 5.5V
Recommended Charging Conditions:0.2C5mA charge termination control parameters taper current 0.01C5mA at 8.4V
Service Life: 1,000 cycles(>=60% C5mAh,0.2C discharge)

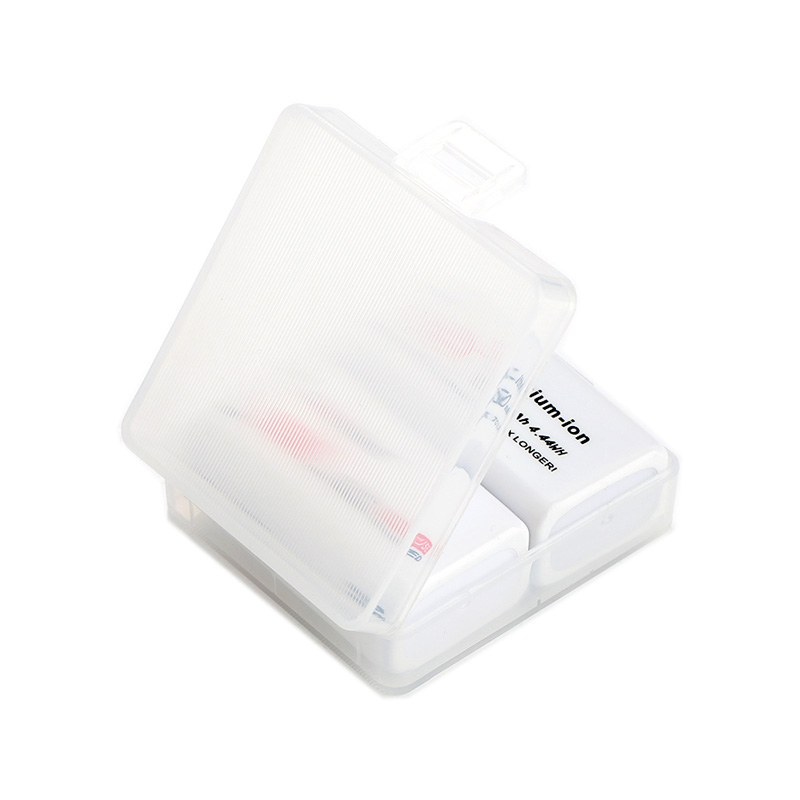

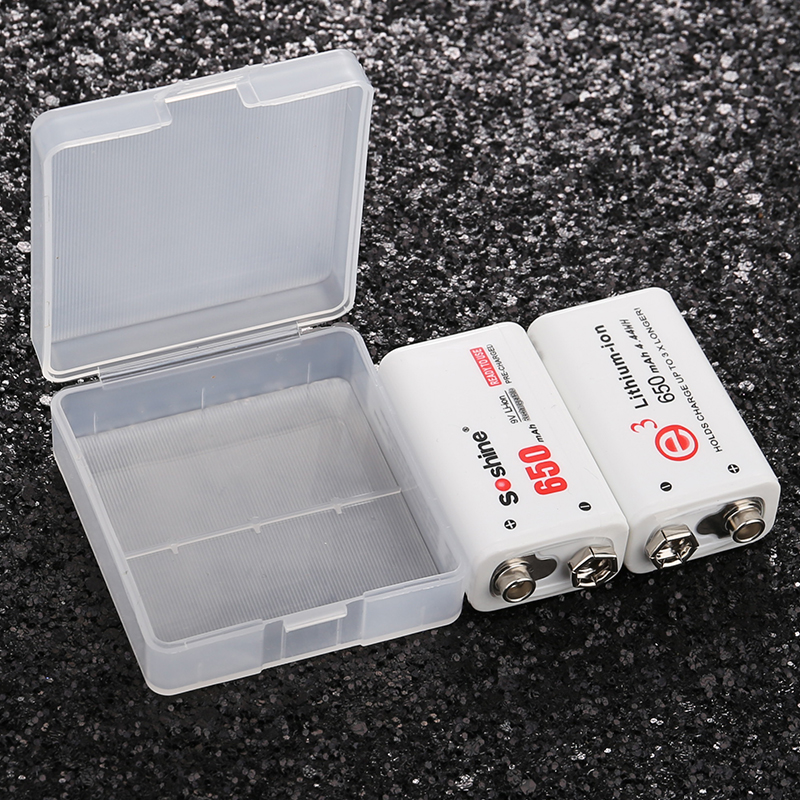

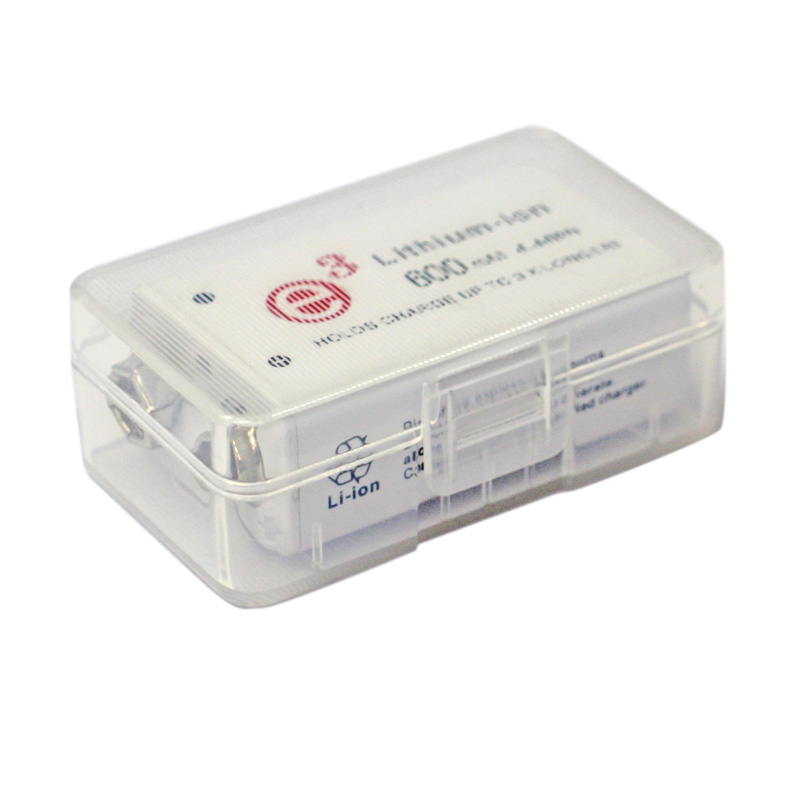

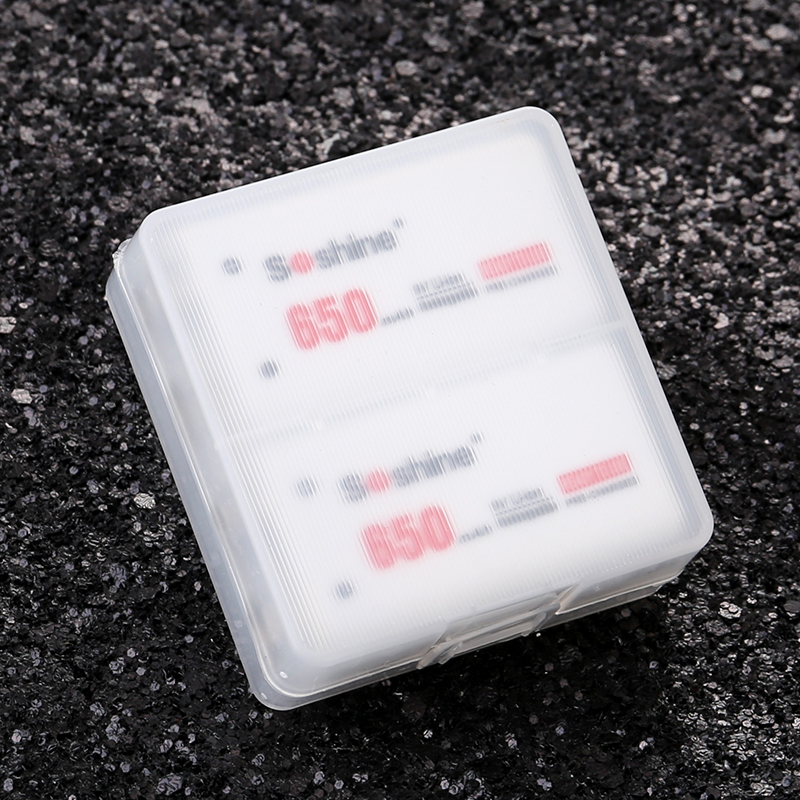

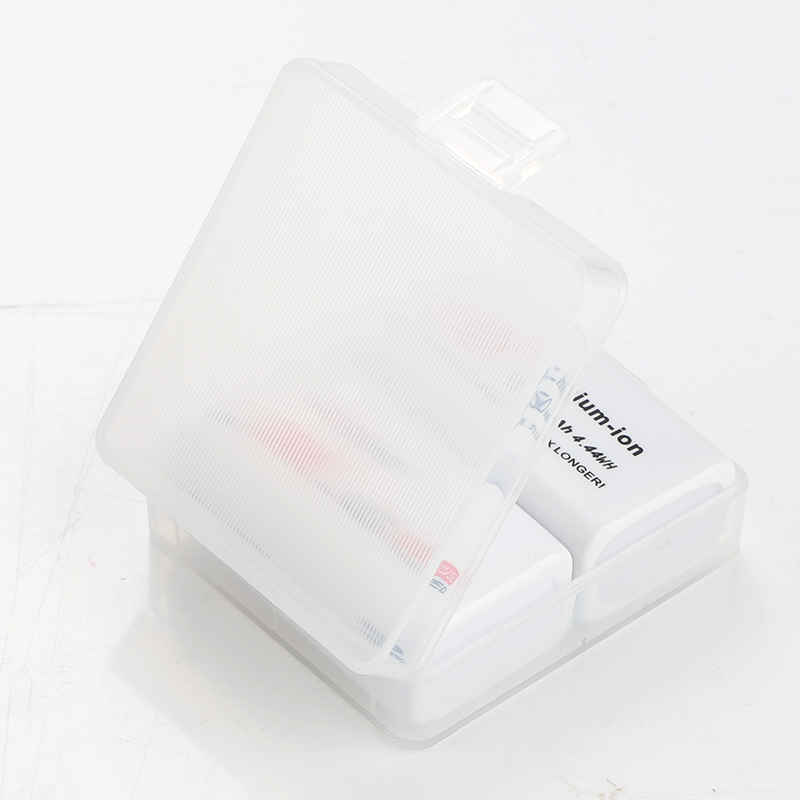

Weight: 28 g (1 cell), 67 (2 cells with package)
Charging Voltage:  8.4+/-0.15V
Ambient Temperature Range
Charging :      0-45 centigrade
Discharging: -20 to +60 centigrade
Storage :       -20 to +40 centigrade

Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.

Certification download:

CE: http://www.soshine.com.cn/Down102.aspx

FCC: http://www.soshine.com.cn/Down103.aspx
