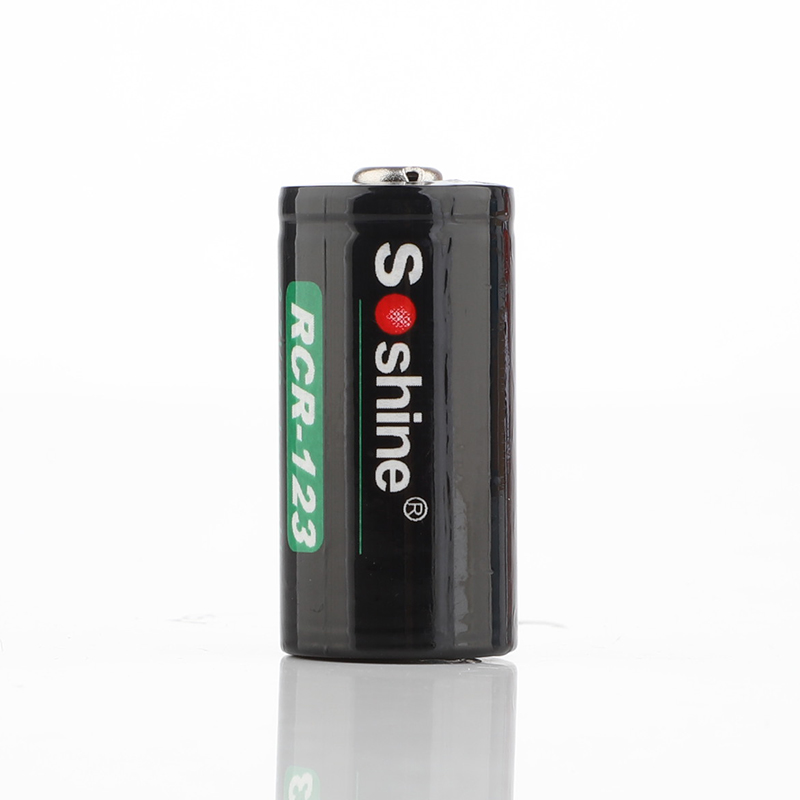

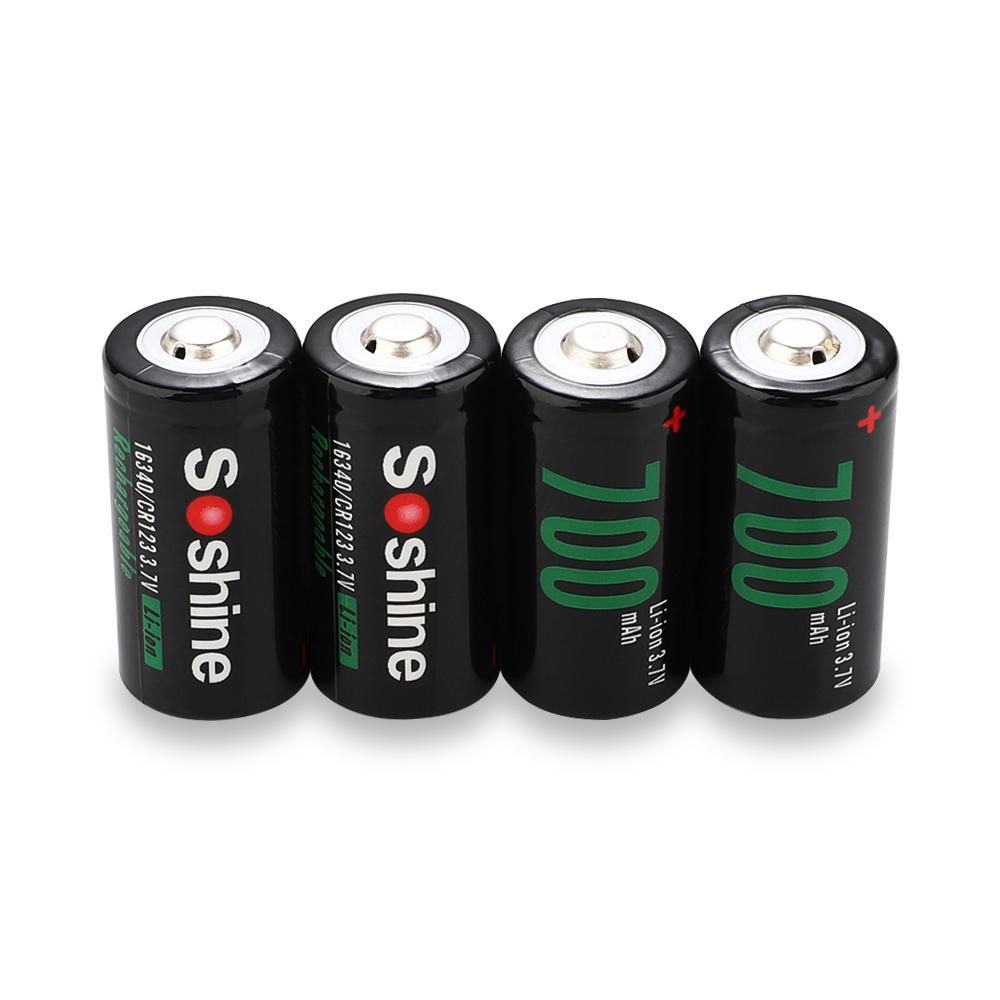

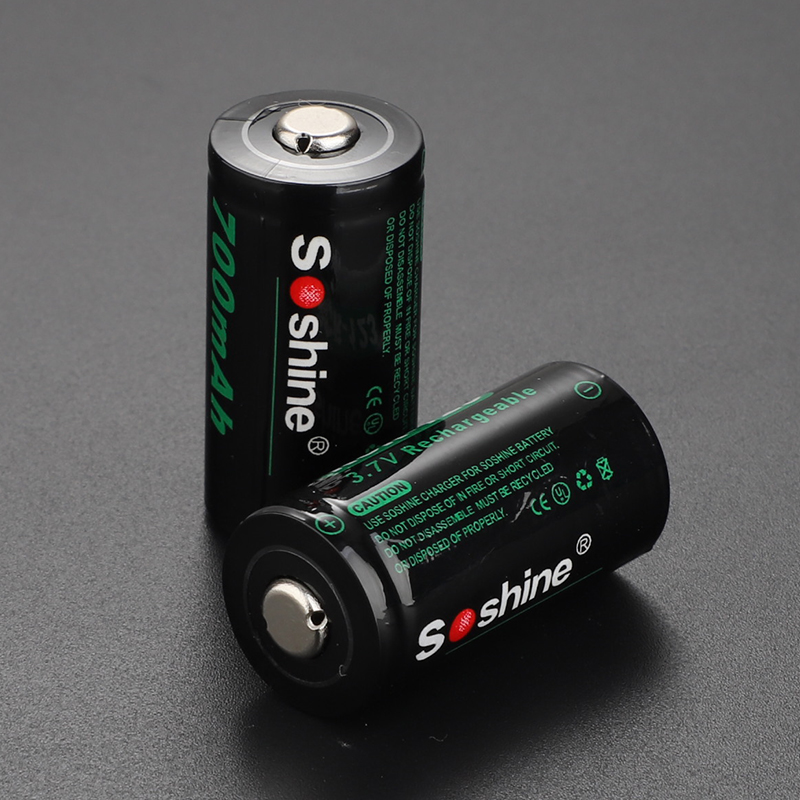

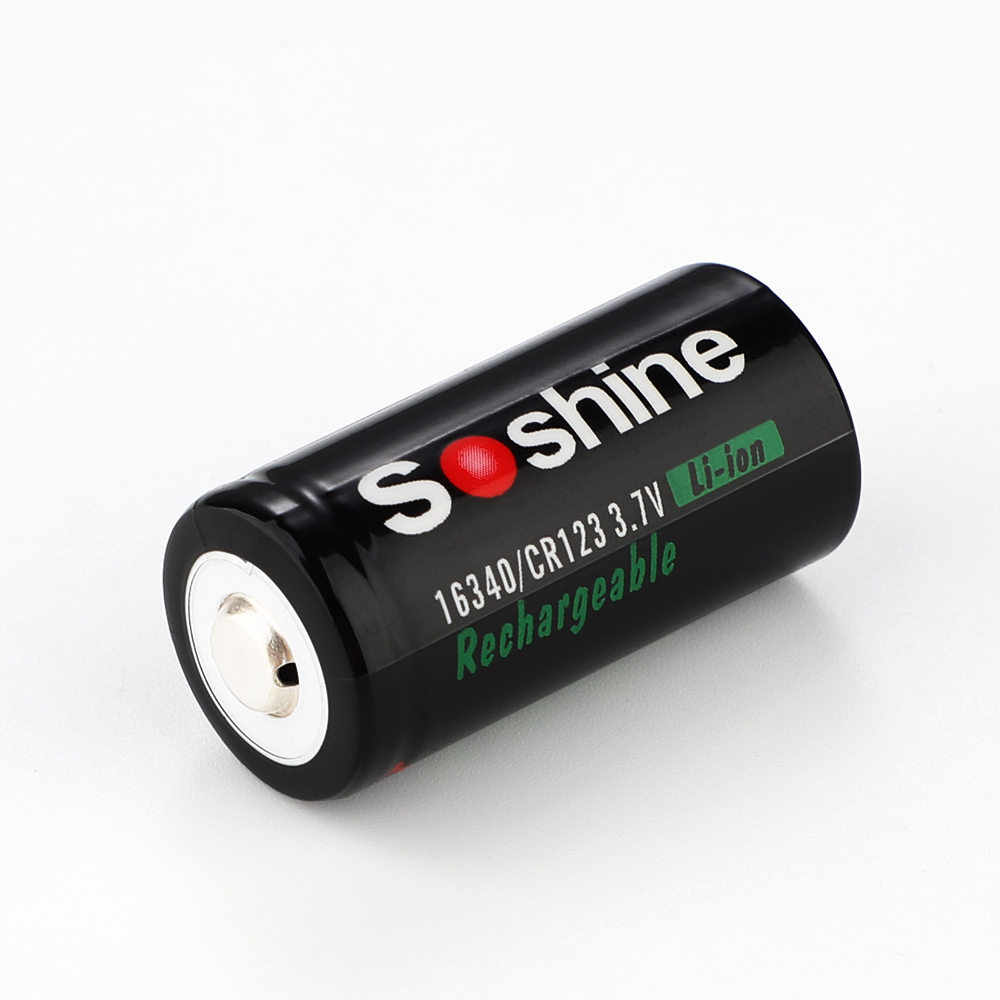

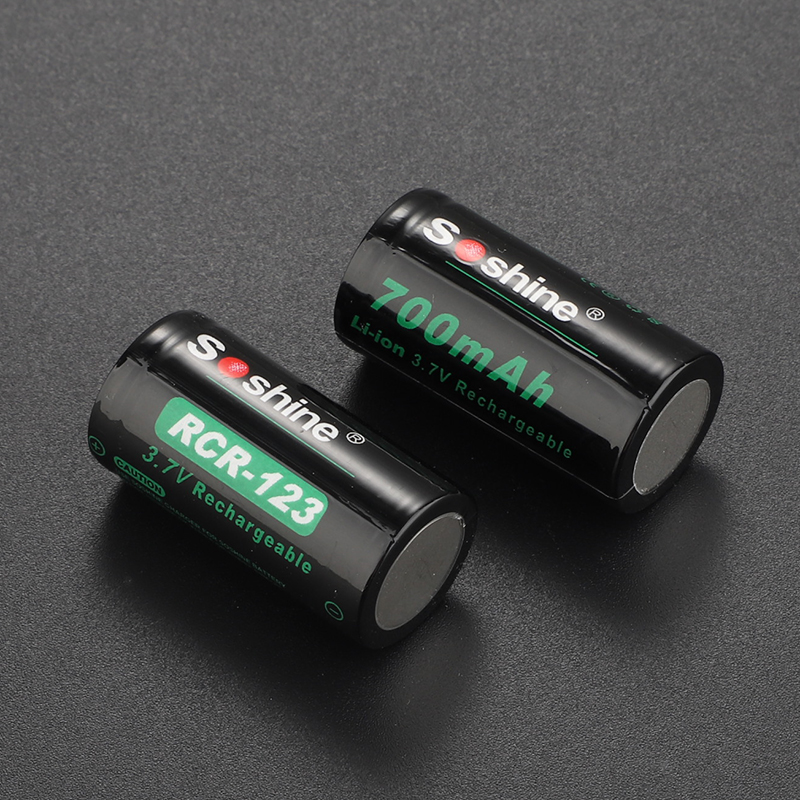

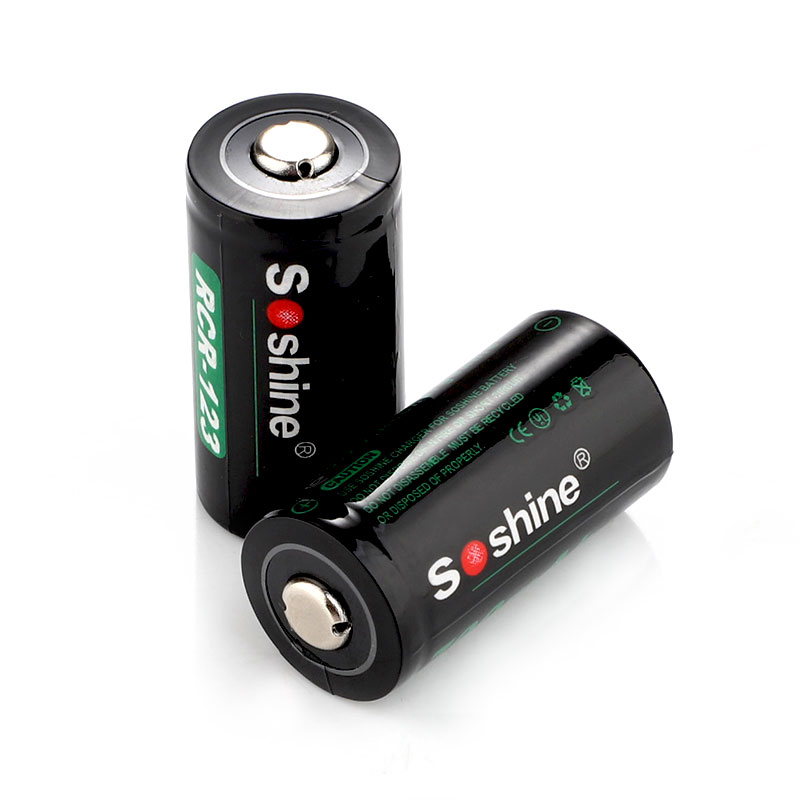

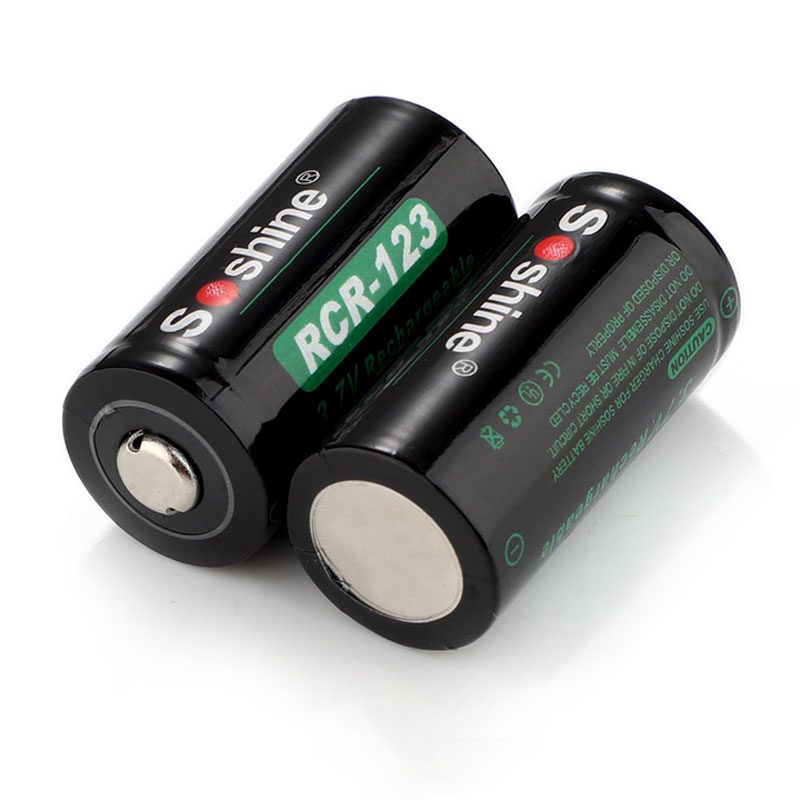

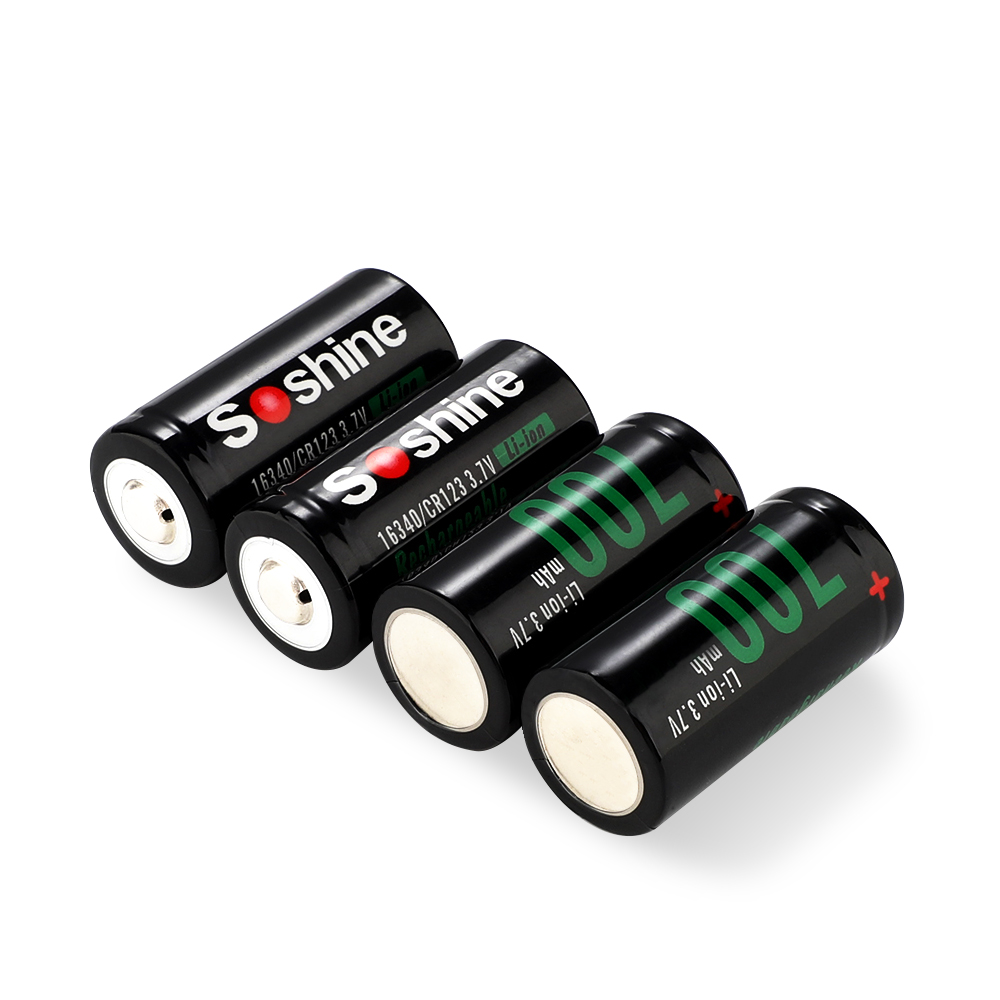

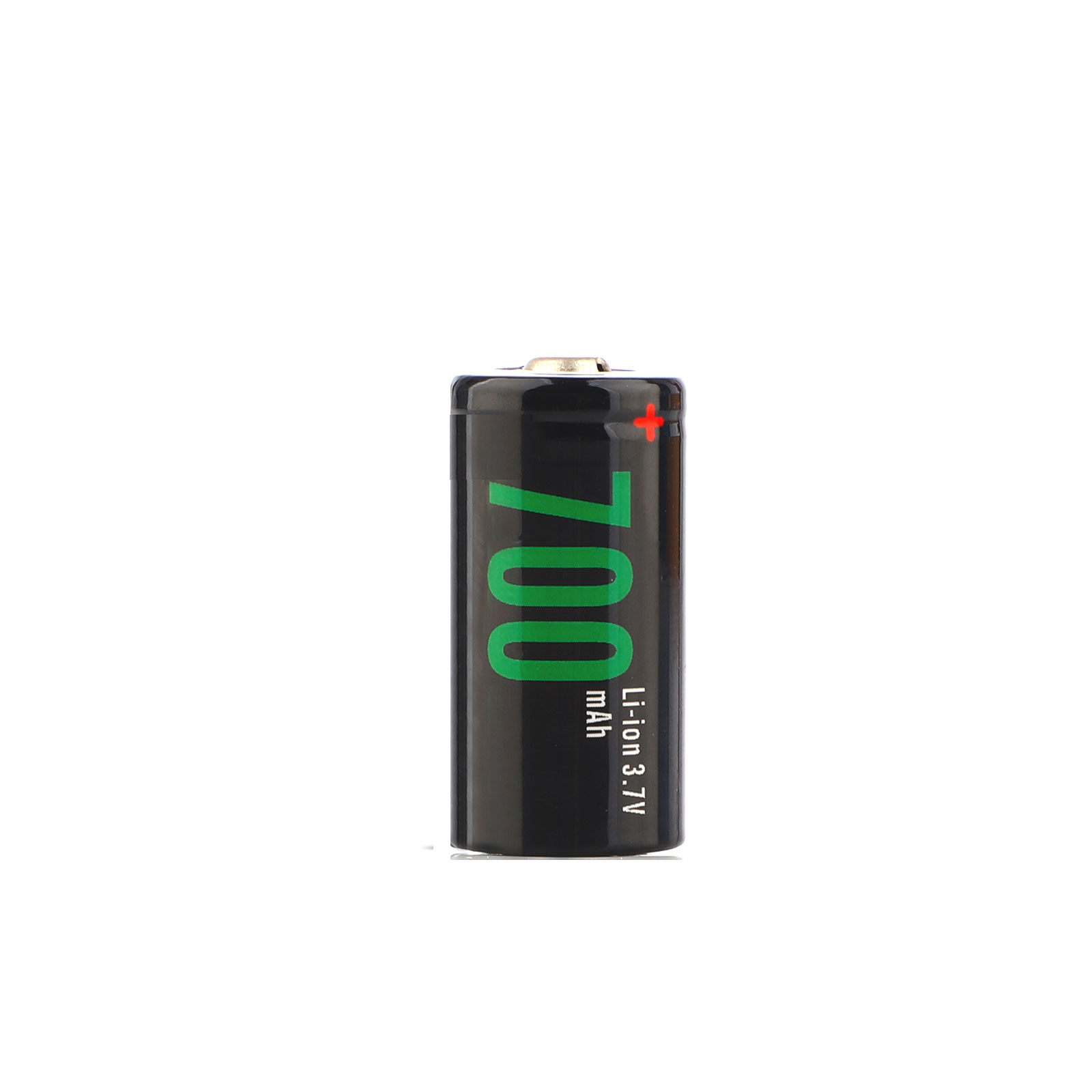

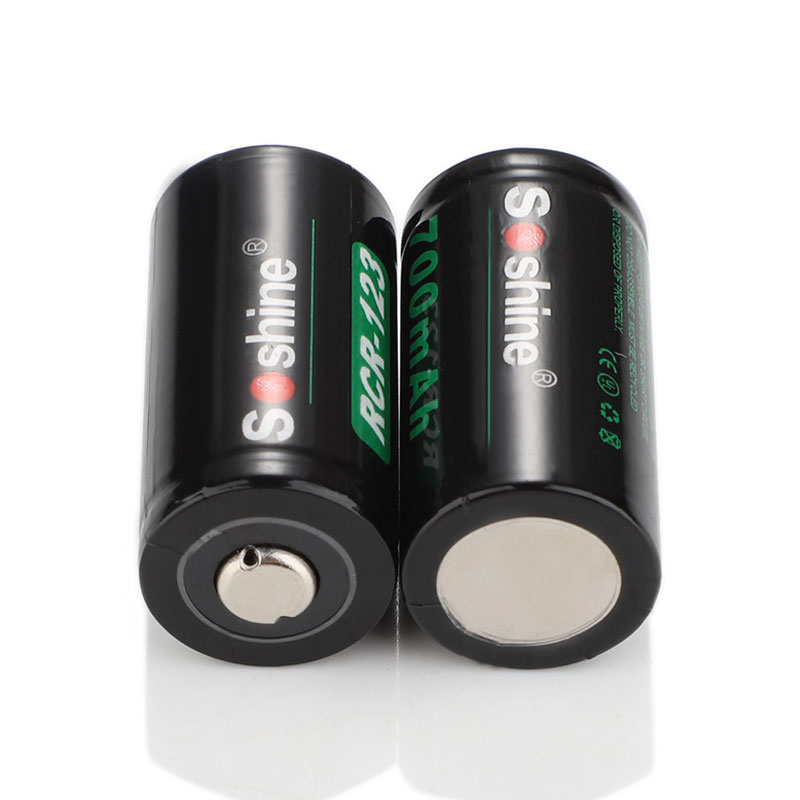

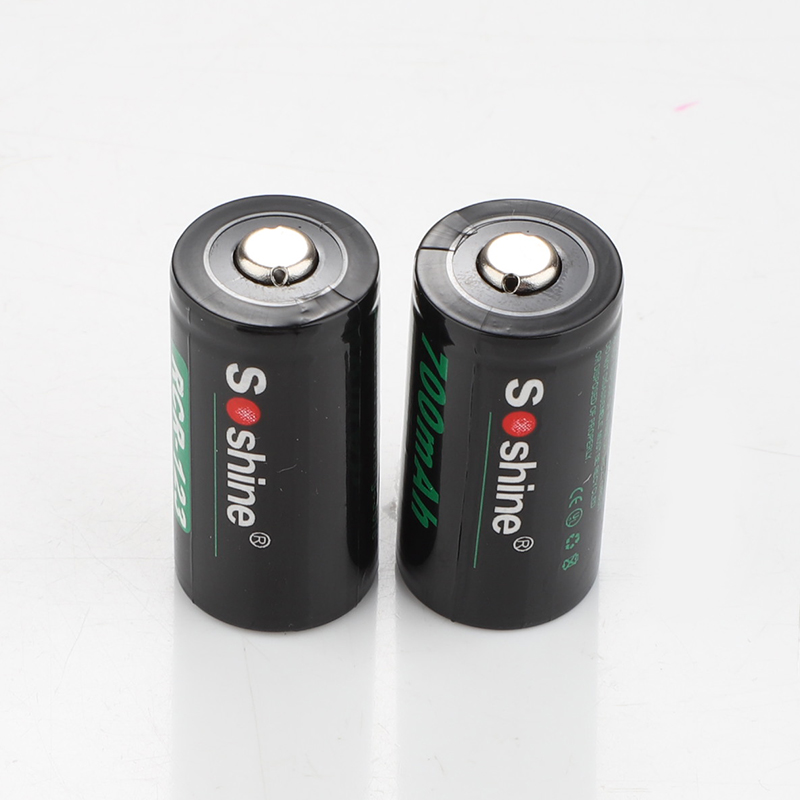

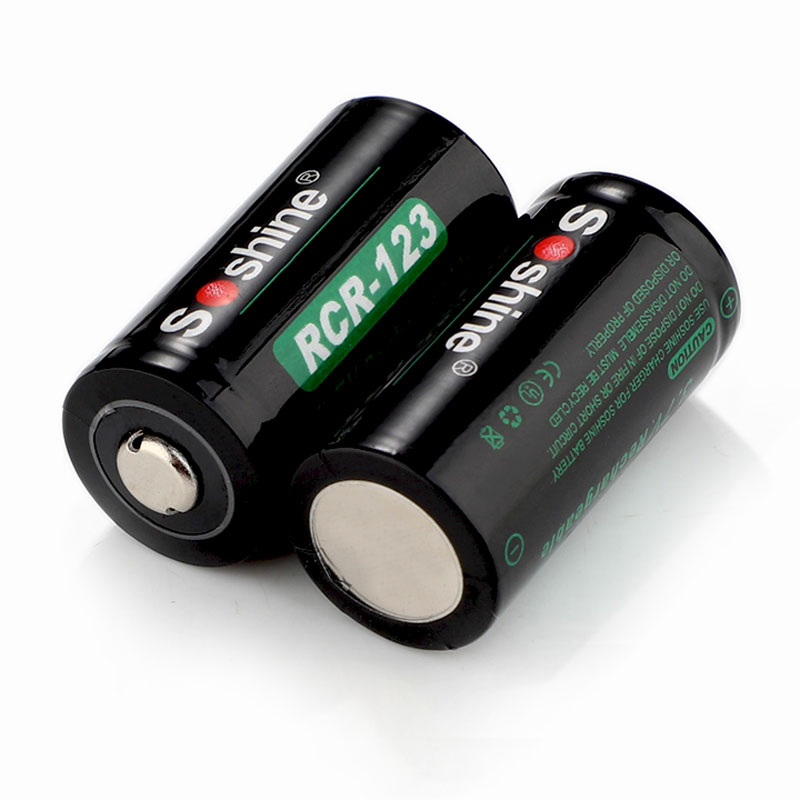

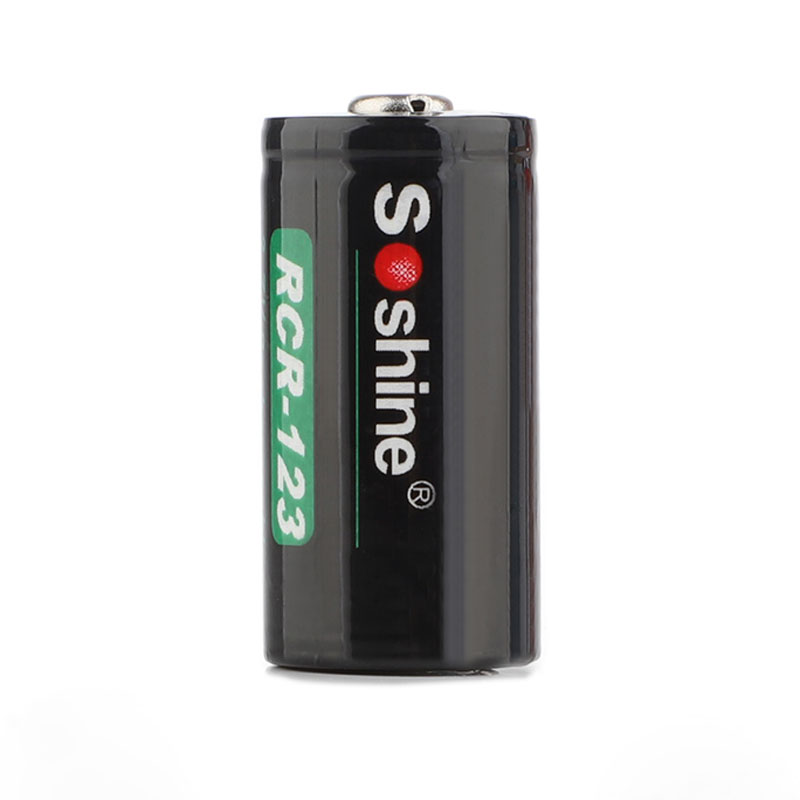

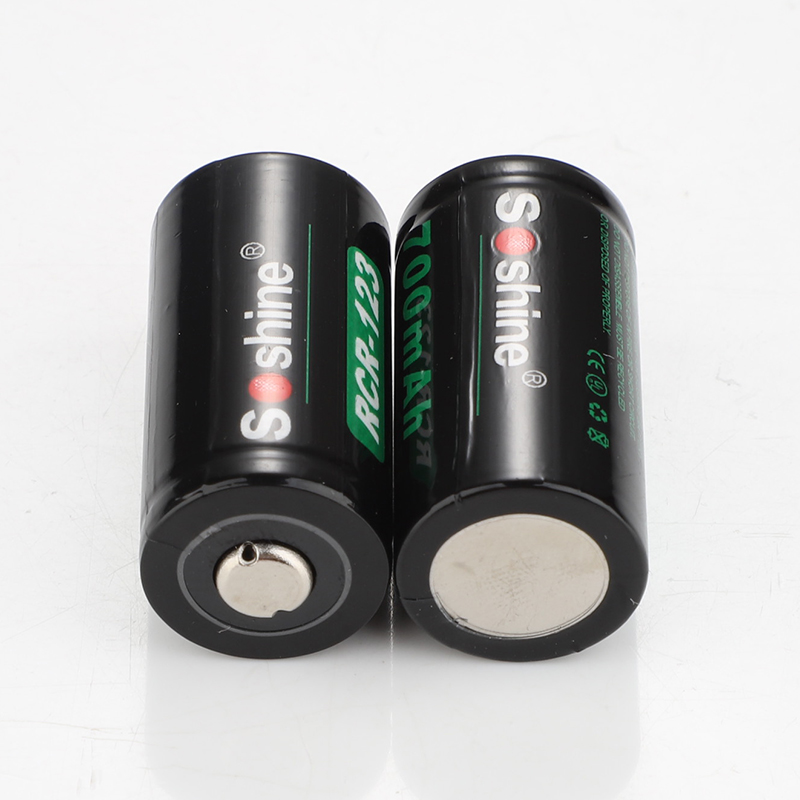

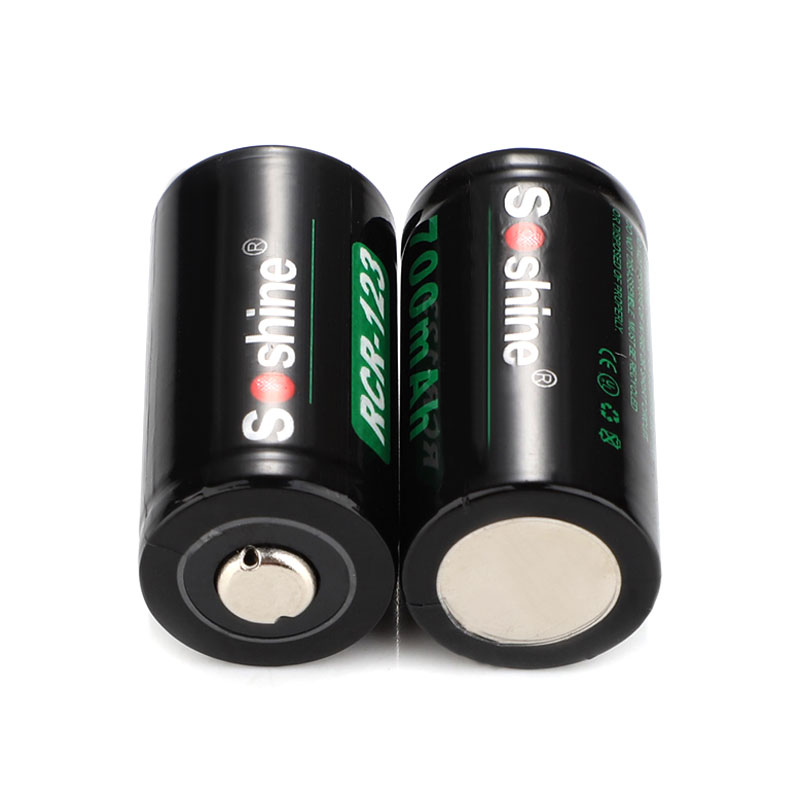

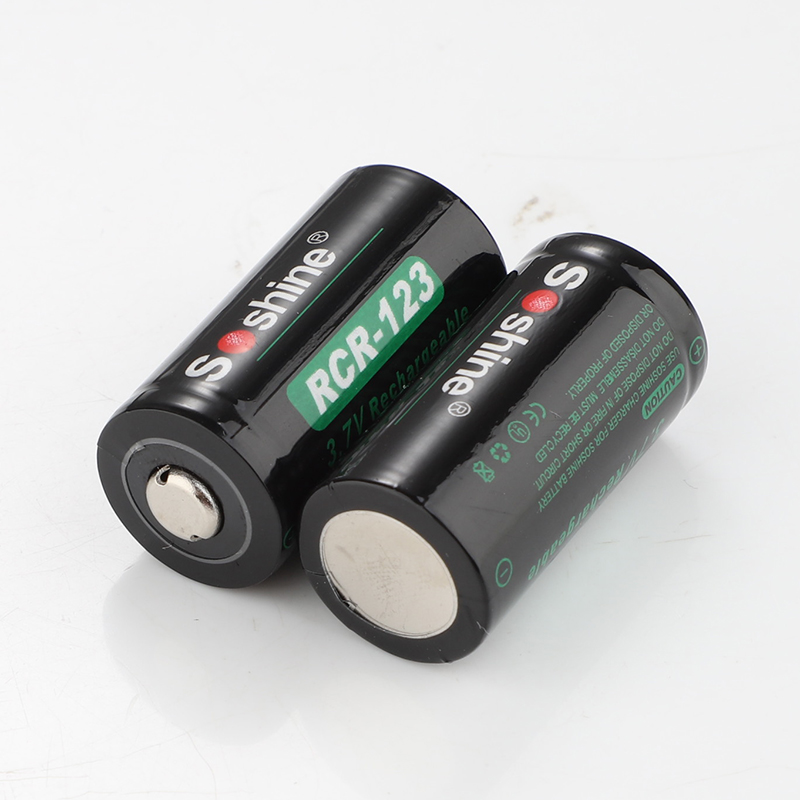

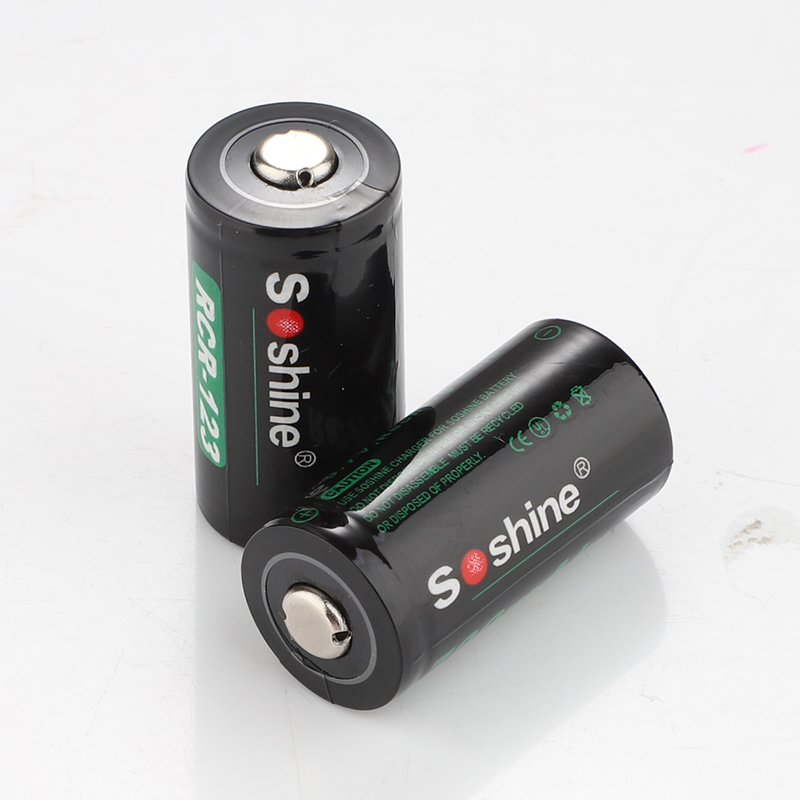

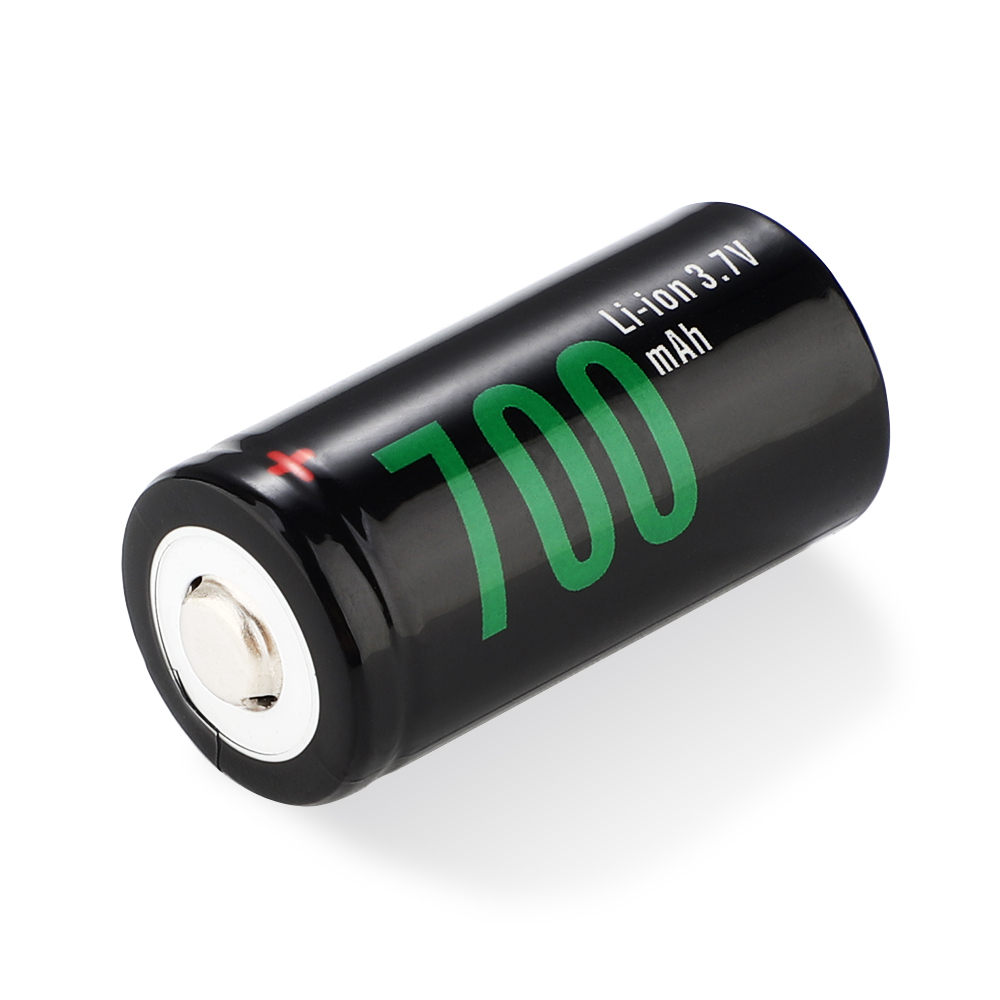

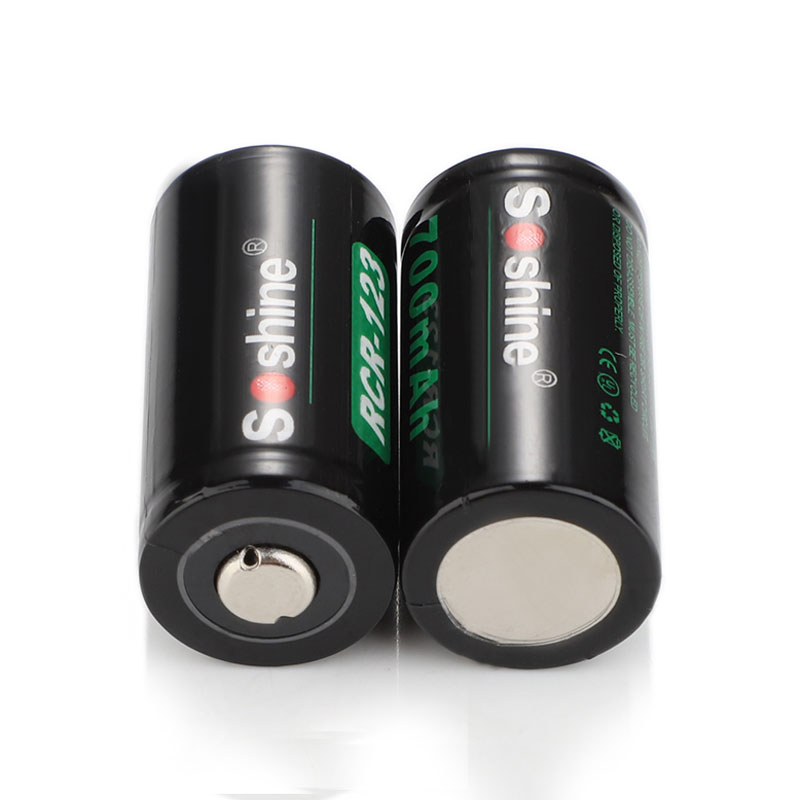

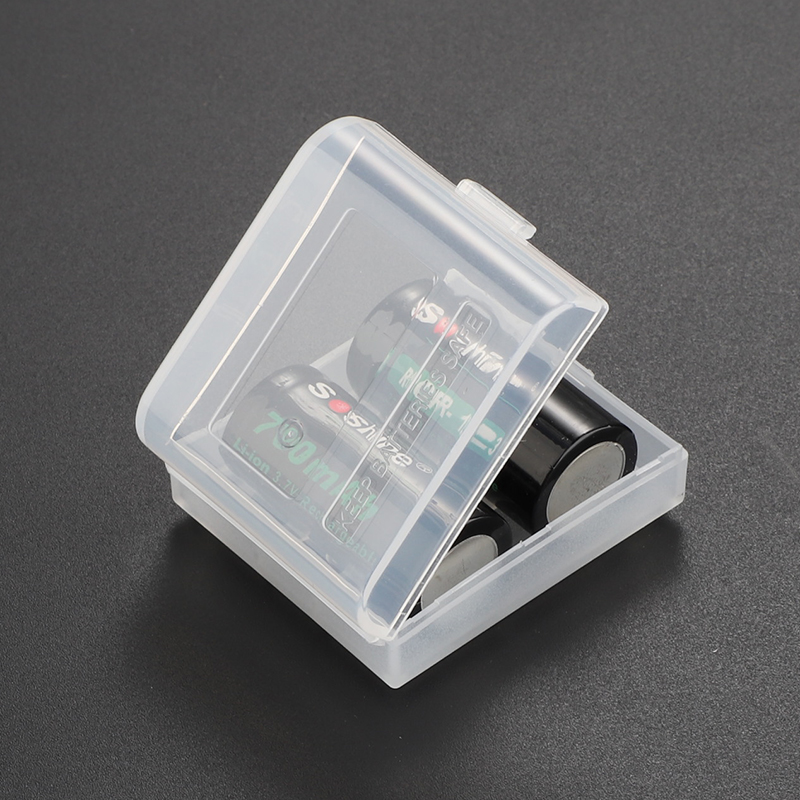

Soshine Li-ion RCR123/16340 Battery: 3.7V 700mAh

Product Overview

Li-ion 3.7V 700mAh

Model: RCR123-3.7-700

Напишите нам: soshineby@gmail.com
Позвоните нам: +375(29)8765720

Description

Soshine Li-ion RCR123/16340 Battery: 700mAh 3.7V

Bar Code: 6951151512123

Model: RCR123-3.7-700

Can replace for CR123, CR17345, K123A, VL123A, DL123A, 5018LC, SF123A and EL123AP

The voltage of full charge & empty condition is 4.2v & 2.75v respectively

Features:

1) High quality and operating voltage 3.7V Li-ion rechargeable battery.

2) Product: ICR16340 Lithium-ion battery with capacity: 700mAh.

3) Light weight, higher energy density, small volume.

4) Longer service life, 1C for Circulation using 500 charge/discharge Cycle, Capacity above 80%.

5) Low self-discharge.

6) No memory effect.

7) Safe and environmentally friendly.

Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.

Type	:Rechargeable Lithium-ion Cylindrical Cell
Dimension	:16.5+-0.2mm :H=33.7+-0.5mm
C₅mAh	:700
C₅mA	:700
Nominal Voltage	3.7V
Capacity	:Nominal 700mAh Minimum 700mAh when discharged at 0.2C₅mA to 2.50V
Recommend Charging Conditions	:100-250mA charge termination control parameters taper current 10mA at 4.1V
Maximum continuous discharge current	:1000mA
Service Life	:300cycles(>=80% C₅mAh)
Weight	:Approx.20g
Internal Resistance	:46-48 mΩ
Charging Voltage	:4.100+-0.05V
Ambient Temperature Range	:Charging : 0--+45 Discharging :-20--+60 Storage :-20--+40
