High Drain Battery

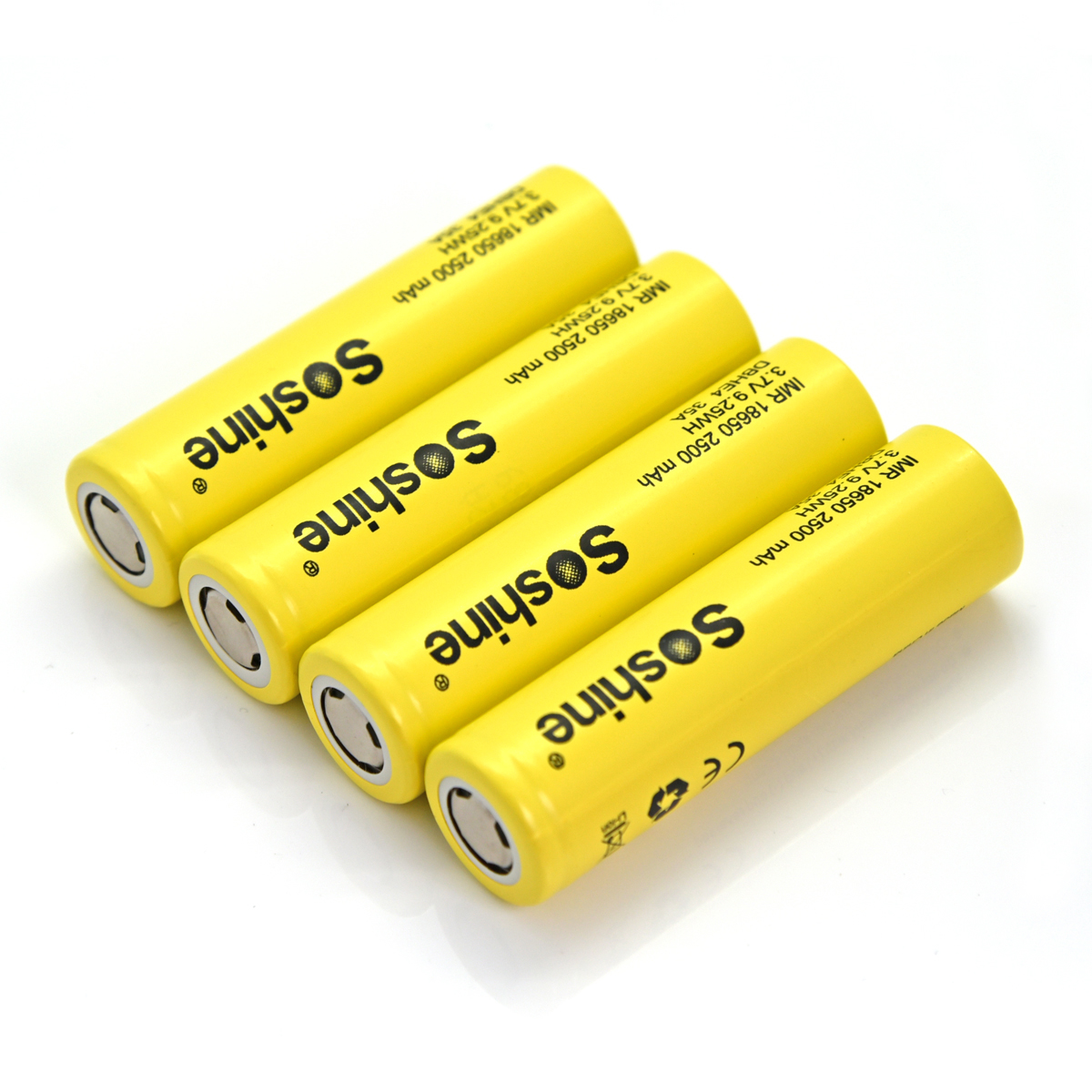

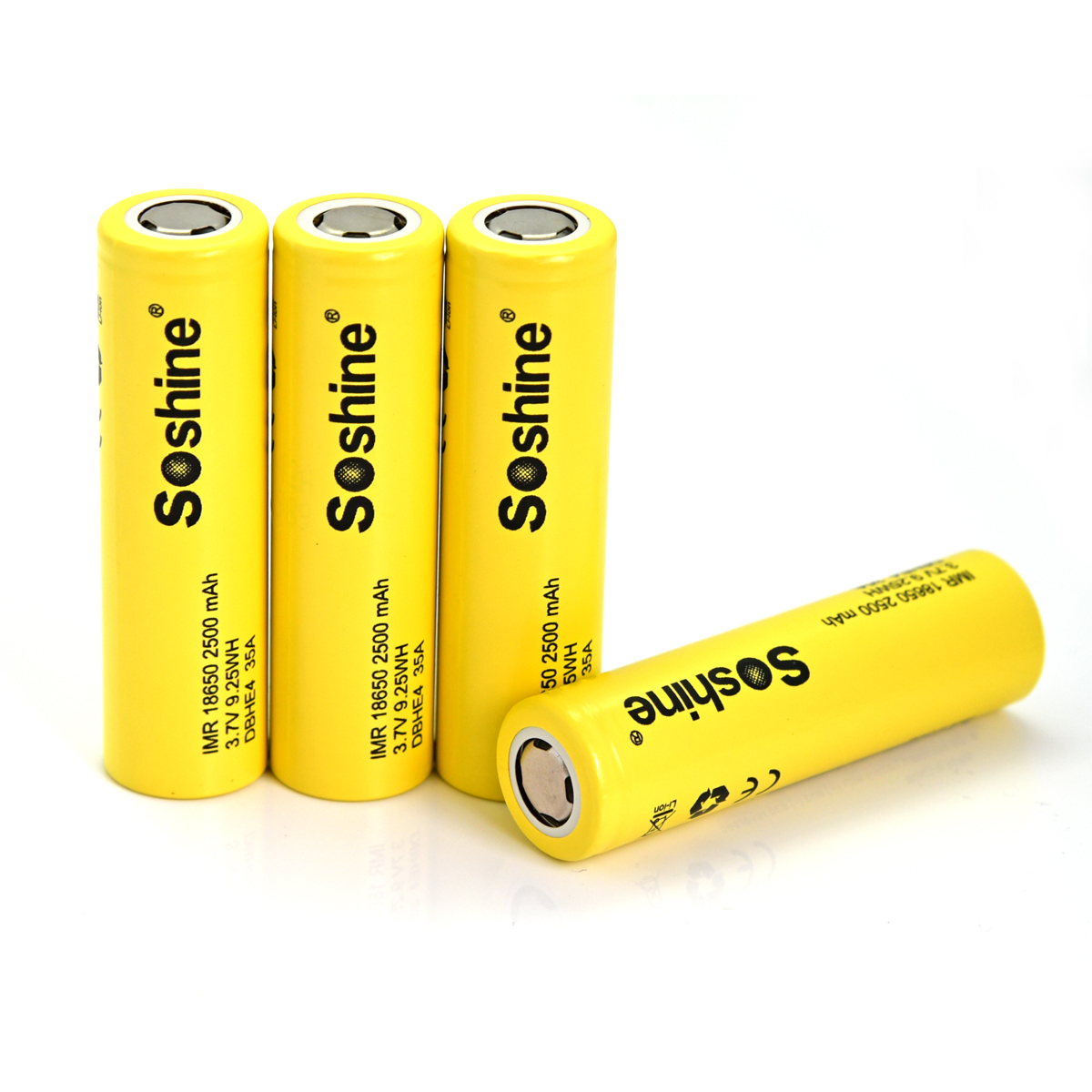

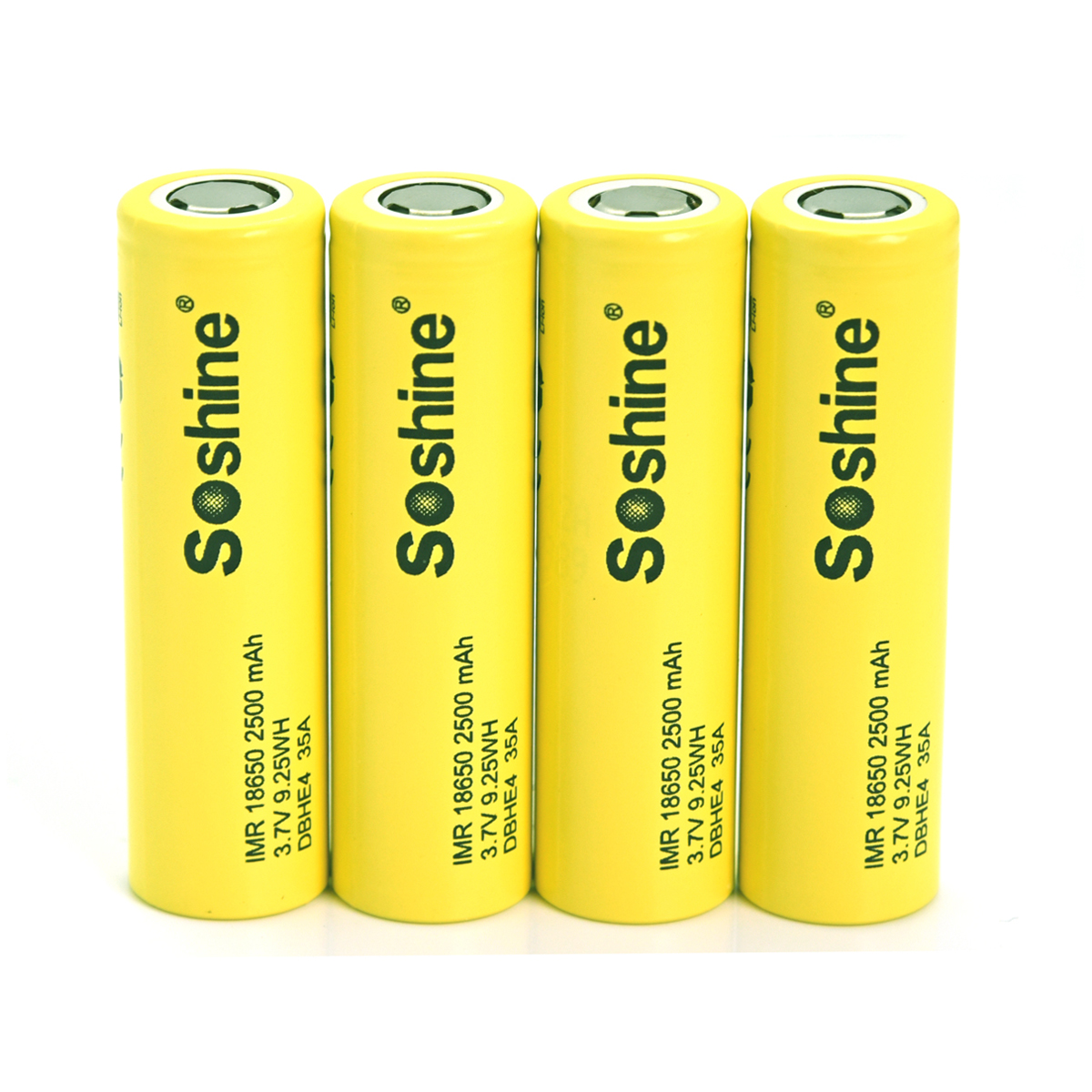

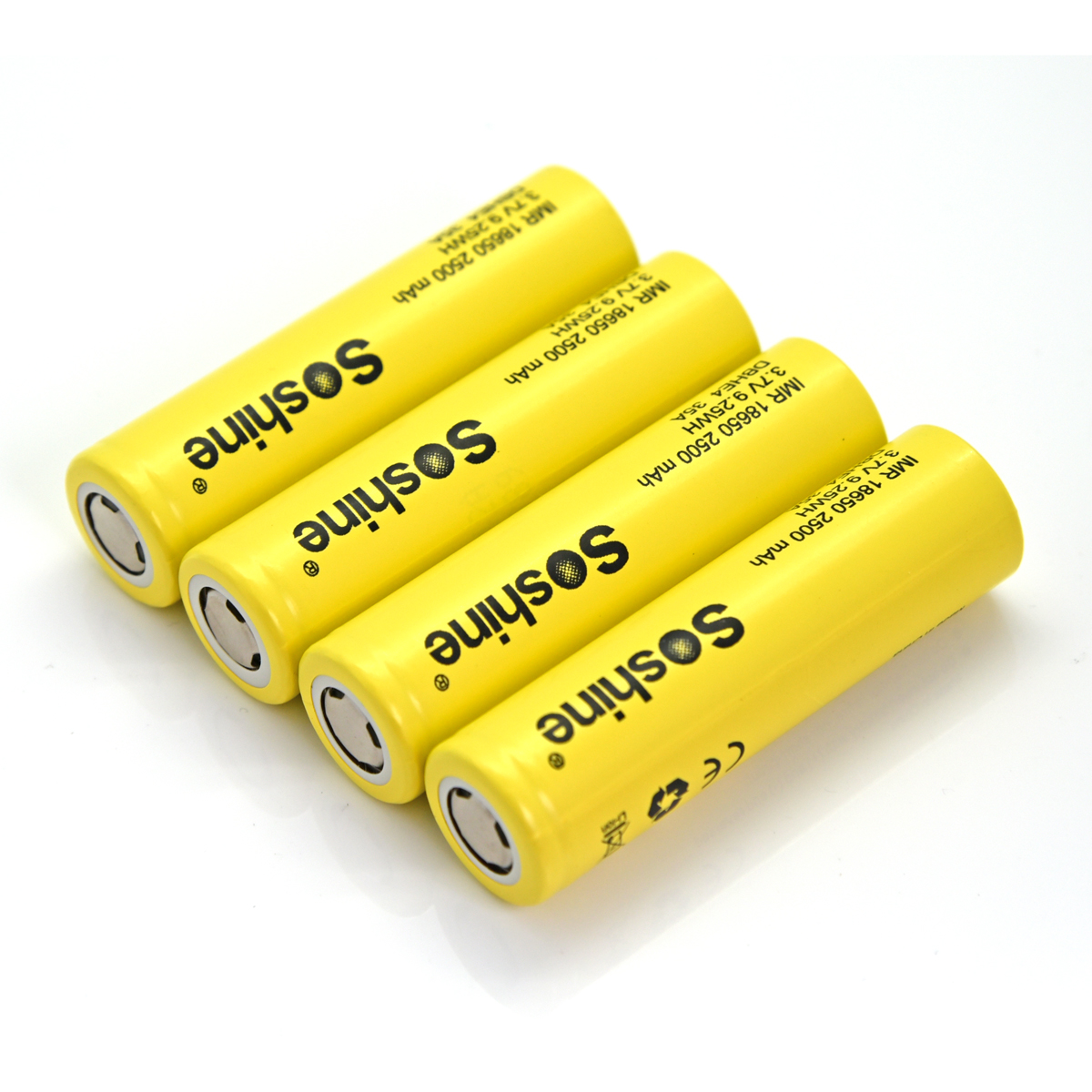

18650 Soshine DBHE4 High Drain Flat Top / 2500mAh 35A Li-Ion Battery

Product Overview

2500mAh / 35A
Flat Top / High Drain
Rated Voltage 3.7 V

Model: 18650-DBHE4

Напишите нам: soshineby@gmail.com
Позвоните нам: +375(29)8765720

Description

18650 Soshine DBHE4 High Drain Flat Top

/ 2500mAh 35A Li-Ion Battery

Bar Code: 6951151512017

Model: 26650-DBHE4

2500mAh / 35A
Flat Top / High Drain
Rated Voltage 3.7 V
Size: 65 mm long, 18mm diameter

Product Specification:

Model: 18650-DBHE4

Nominal Capacity: 2500mAh
Nominal Voltage: 3.6V

Standard Charge
Constant current: 1250mA
Constant voltage: 4.2V
End condition(Cut off): 50mA

Fast Charge
Constant current: 4000mA
Constant voltage: 4.2V
End condition(Cut off): 100mA
Max. Charge Voltage: 4.2V
Max. Charge Current: 4000mA
Standard Discharge
Constant current: 500mA
End voltage(Cut off): 2.5V
Fast Discharge
Constant current: 10000mA,20000mA
End voltage(Cut off): 2.5V
Max.Continuous Discharge Current: 20A
Max.Plus Discharge Current: 35A
Initial AC Impedance: ≤20 mΩ, without PTC
Weight: 47.0g
Dimension: Max.(D)18.5*(H)65.2mm

Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.

Certification/Test Report download:

UN38.3: http://www.soshine.com.cn/Down110.aspx

MSDS: http://www.soshine.com.cn/Down111.aspx
