High Drain Battery

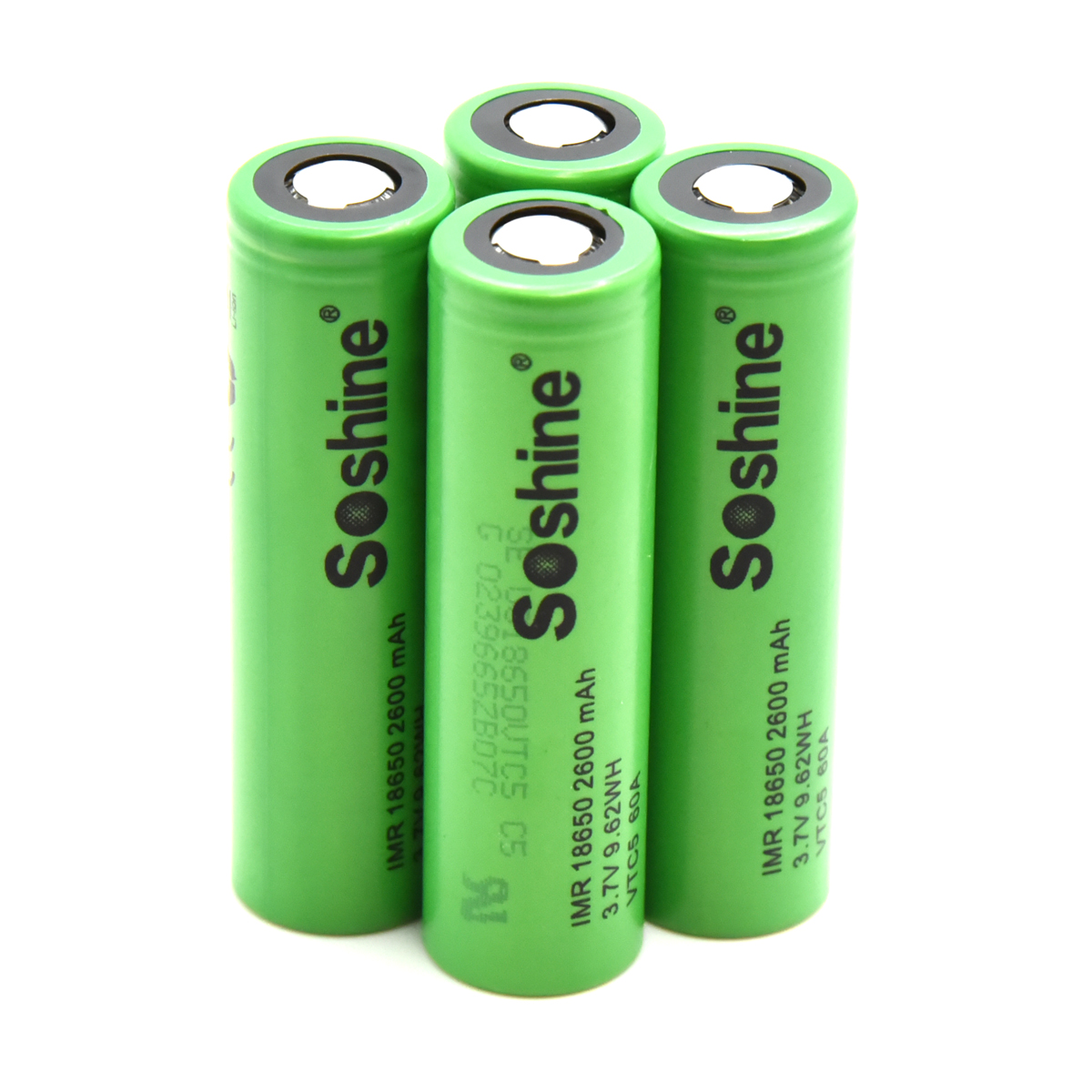

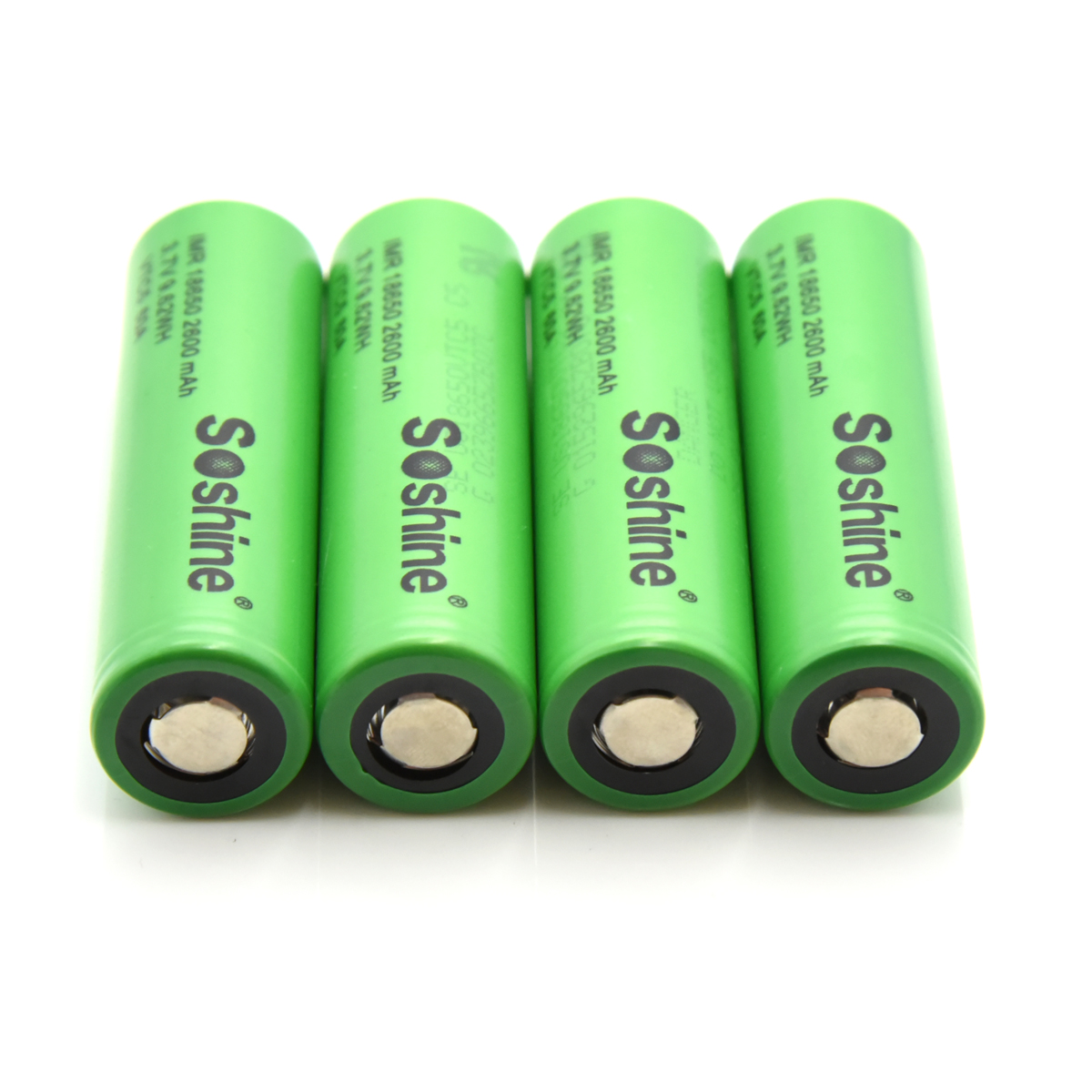

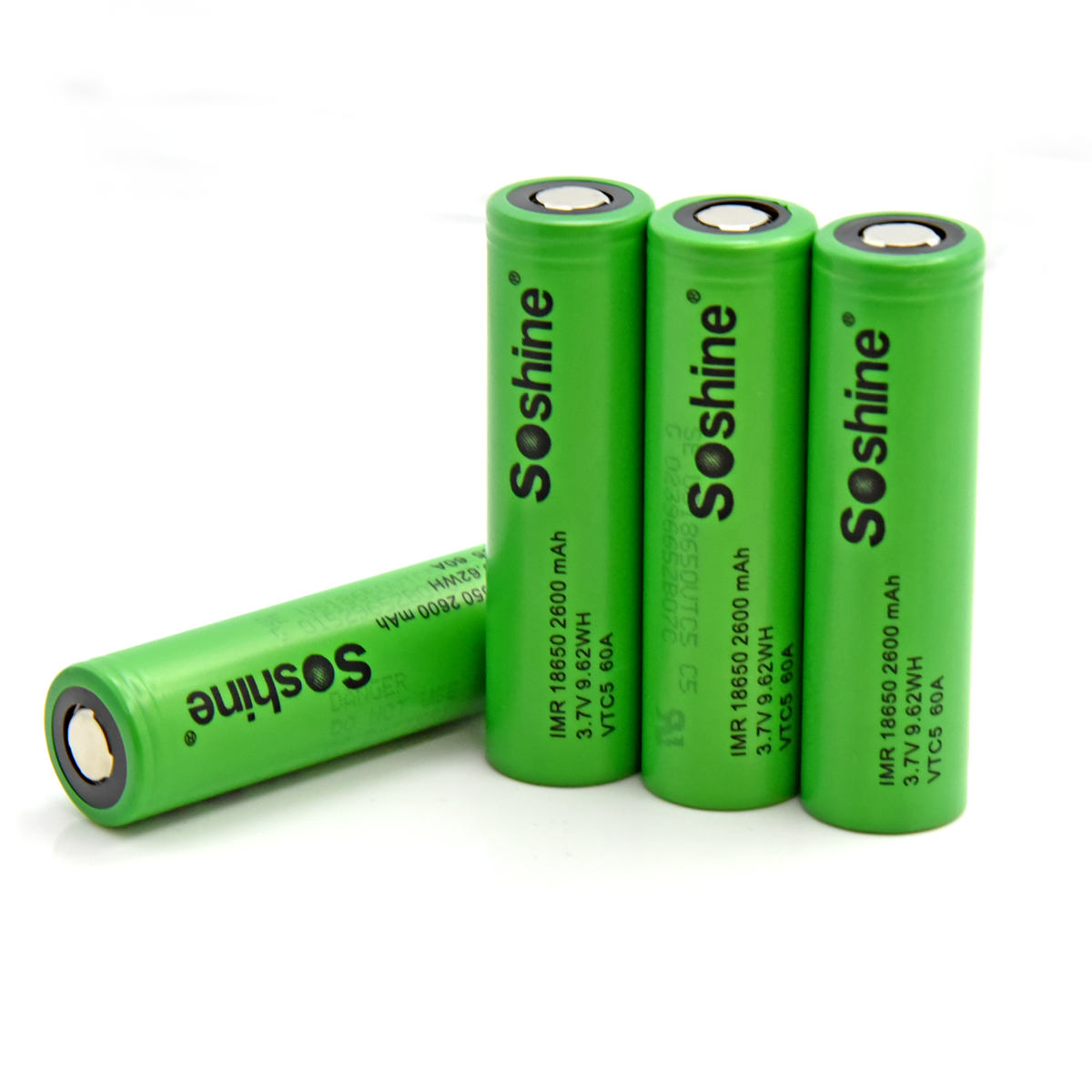

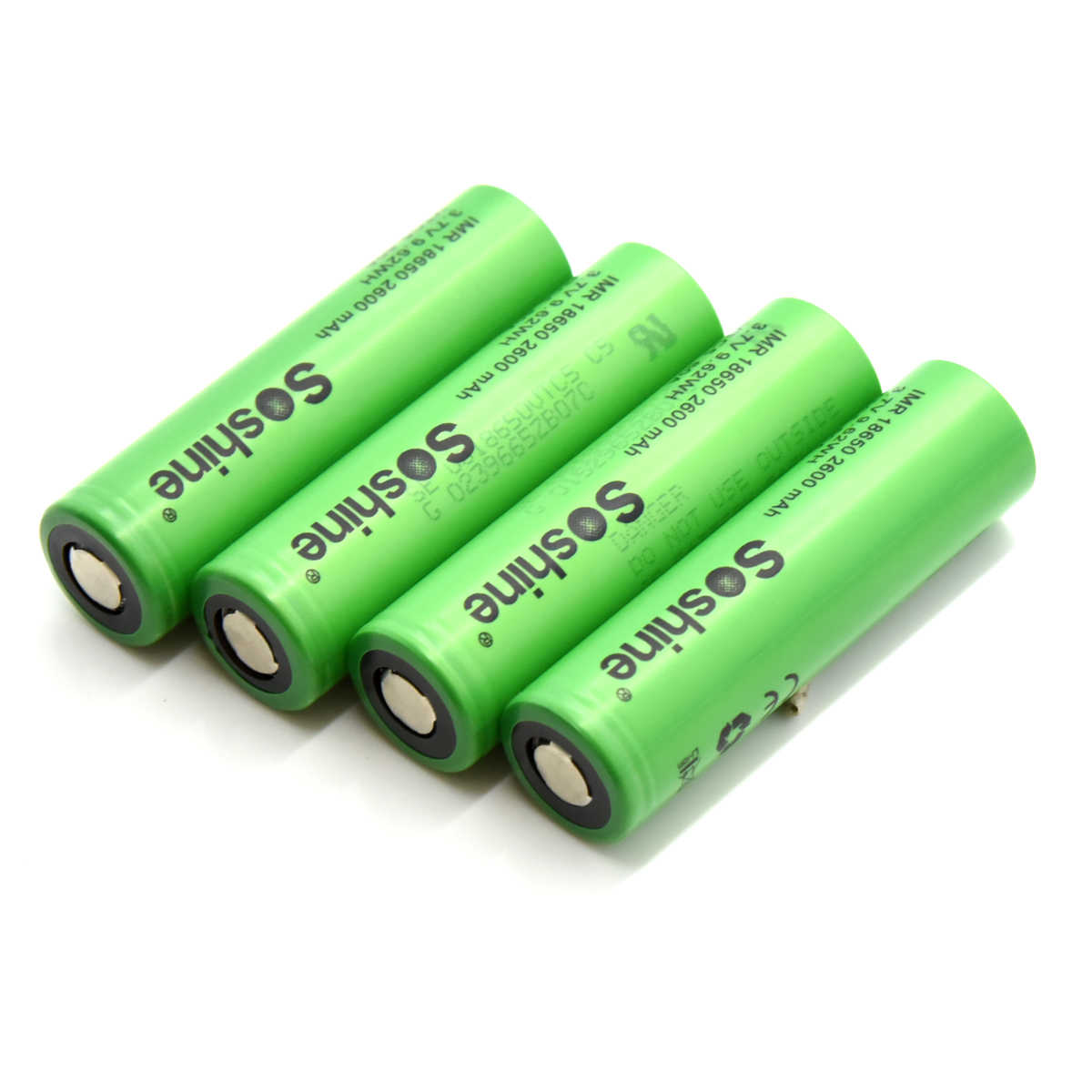

18650 Soshine VTC5 60A 2600mAh Flat Top High Drain Battery

Product Overview

High Discharge /Li-ion IMR battery
Type: Flat Top

Model: 18650-VTC5

Напишите нам: soshineby@gmail.com
Позвоните нам: +375(29)8765720

Description

18650 Soshine VTC5 60A 2600mAh Flat Top High Drain Battery

Bar Code: 6951151512031

Model: 18650-VTC5

Product Specification:
Model:18650-VTC5
Nominal Capacity: 2600mAh
Nominal Voltage: 3.6V

Standard Charge
Constant current: 1000mA
Constant voltage: 4.2V
End condition(Cut off): 50mA

Fast Charge
Charge Voltage: 4.2V
Max. Charge Current: 4000mA
End condition(Cut off): 100mA

Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.

Fast Discharge
End voltage(Cut off): 2.5V
Max.Continuous Discharge Current: 30A
Max.Plus Discharge Current: 60A
Initial AC Impedance: ≤20 mΩ, without PTC
Weight: 48g
Dimension: Max.(D)18.5*(H)65.2mm

Color: Green

Certification /Test report download:

MSDS: http://www.soshine.com.cn/Down118.aspx

UN38.3: http://www.soshine.com.cn/Down119.aspx
